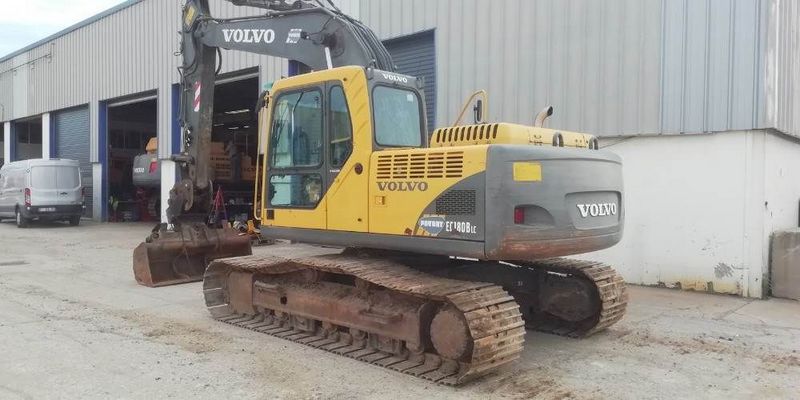

Volvo EC180BLC
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.81 ft in (8780 mm) |
| Shipping Height Of Unit | 9.62 ft in (2932 mm) |
| Max Cutting Height | 28.09 ft in (8560 mm) |
| Max Loading Height | 20.15 ft in (6140 mm) |
| Max Reach Along Ground | 27.83 ft in (8480 mm) |
| Max Vertical Wall Digging Depth | 13.26 ft in (4040 mm) |
| Max Digging Depth | 18.74 ft in (5710 mm) |
| Boom/Stick Option (Hex) 1 | Monoblock Boom 5200mm / Stick 2300mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Max Cutting Height | 28.94 ft in (8820 mm) |
| Shipping Height Of Unit | 9.62 ft in (2932 mm) |
| Max Loading Height | 20.9 ft in (6370 mm) |
| Max Reach Along Ground | 28.88 ft in (8800 mm) |
| Max Vertical Wall Digging Depth | 14.8 ft in (4510 mm) |
| Max Digging Depth | 19.72 ft in (6010 mm) |
| Boom/Stick Option (Hex) 2 | Monoblock Boom 5200mm / Stick 2600mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Max Cutting Height | 29.63 ft in (9030 mm) |
| Max Loading Height | 21.56 ft in (6570 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Reach Along Ground | 30.12 ft in (9180 mm) |
| Max Vertical Wall Digging Depth | 16.18 ft in (4930 mm) |
| Max Digging Depth | 21.04 ft in (6410 mm) |
| Boom/Stick Option (Hex) 3 | Monoblock Boom 5200mm / Stick 3000mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 28.22 ft in (8600 mm) |
| Shipping Height Of Unit | 9.62 ft in (2932 mm) |
| Max Cutting Height | 31.3 ft in (9540 mm) |
| Max Loading Height | 22.81 ft in (6950 mm) |
| Max Reach Along Ground | 27.47 ft in (8370 mm) |
| Max Digging Depth | 17 ft in (5180 mm) |
| Max Vertical Wall Dig Depth | 13.26 ft in (4040 mm) |
| Boom/Stick Option (Hex) 4 | 2-piece Boom 5000mm / Stick 2300mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Shipping Height Of Unit | 9.62 ft in (2932 mm) |
| Max Cutting Height | 32.32 ft in (9850 mm) |
| Max Loading Height | 23.76 ft in (7240 mm) |
| Max Reach Along Ground | 28.52 ft in (8690 mm) |
| Max Digging Depth | 18.05 ft in (5500 mm) |
| Max Vertical Wall Dig Depth | 14.44 ft in (4400 mm) |
| Boom/Stick Option (Hex) 5 | Monoblock Boom 5200mm / Stick 2600mm |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 33.34 ft in (10160 mm) |
| Max Loading Height | 24.78 ft in (7550 mm) |
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Max Reach Along Ground | 29.79 ft in (9080 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Digging Depth | 18.97 ft in (5780 mm) |
| Boom/Stick Option (Hex) 6 | Monoblock Boom 5200mm / Stick 3000mm |
| Max Vertical Wall Dig Depth | 15.75 ft in (4800 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.62 ft in (2932 mm) |
| Width To Outside Of Tracks | 9.19 ft in (2800 mm) |
| Length Of Track On Ground | 11.06 ft in (3370 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Removal Counterweight Clearance | 3.42 ft in (1042 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 46 |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 5.86 psi (40.4 kPa) |
Engine
| Engine Make | 2244 |
| Engine Model | D6D EHE2 |
| Net Power | 109 hp (81.3 kw) |
| Gross Power | 121 hp (90.3 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 399.8 lb ft (542 Nm) |
| Aspiration | Turbocharged |
| Displacement | 347.9 cu in (5.7 L) |
| Torque Measured @ | 1450 rpm |
Operational
| Operating Weight | 399036.7 lb (181000 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 64.8 gal (245 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.6 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 76.7 gal/min (290 L/min) |
Swing Mechanism
| Swing Speed | 11.9 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.9 yd3 (1.5 m3) |
