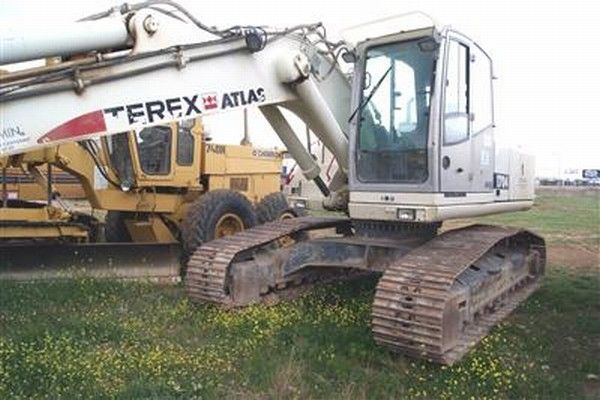

Terex 1704LC
Browse All Terex or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 36.68 ft in (11180 mm) |
| Max Digging Depth | 21.02 ft in (6405 mm) |
| Boom/Stick Option (Hex) 1 | hydraulically adjustable boom w/ stick 2300mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 38.19 ft in (11640 mm) |
| Max Digging Depth | 22.41 ft in (6830 mm) |
| Boom/Stick Option (Hex) 2 | hydraulically adjustable boom w/ stick 2800mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 29.86 ft in (9100 mm) |
| Max Digging Depth | 20.84 ft in (6350 mm) |
| Boom/Stick Option (Hex) 3 | Monobloc boom w/ stick 2300mm |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 30.35 ft in (9250 mm) |
| Max Digging Depth | 22.48 ft in (6850 mm) |
| Boom/Stick Option (Hex) 4 | Monobloc boom w/ stick 2800mm |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 10.04 ft in (3060 mm) |
| Width To Outside Of Tracks | 9.85 ft in (3000 mm) |
| Length Of Track On Ground | 12.21 ft in (3720 mm) |
| Tail Swing Radius | 8.86 ft in (2700 mm) |
| Removal Counterweight Clearance | 3.84 ft in (1170 mm) |
Undercarriage
| Track Gauge | 7.88 ft in (2400 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
Engine
| Engine Make | 2349 |
| Engine Model | BF6M 1013 ECP |
| Gross Power | 213 hp (158.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 436.4 cu in (7.2 L) |
| Aspiration | Turbocharging/intercooler |
Operational
| Operating Weight | 52911 lb (24000 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 101.8 gal (385 L) |
| Engine Oil Capacity | 5.6 gal (21 L) |
| Operating Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 55.2 psi (380 kPa) |
| Hydraulic Pump Flow Capacity | 84.6 gal/min (320 L/min) |
Swing Mechanism
| Swing Torque | 49564.2 lb ft (67200 Nm) |
| Swing Speed | 8.5 rpm |
Buckets
| Reference Bucket Capacity | 1.7 yd3 (1.3 m3) |
| Minimum Bucket Capacity | 1.7 yd3 (1.3 m3) |
| Maximum Bucket Capacity | 2 yd3 (1.5 m3) |
