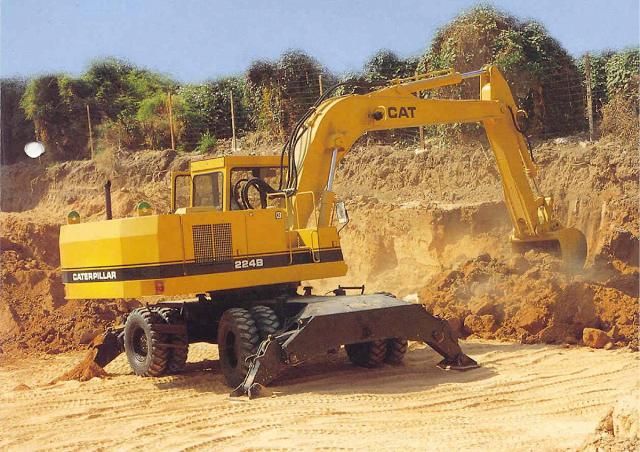

Caterpillar 224
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 25.6 ft in (7800 mm) |
| Max Loading Height | 18.05 ft in (5500 mm) |
| Max Reach Along Ground | 28.25 ft in (8610 mm) |
| Max Digging Depth | 18.02 ft in (5490 mm) |
| Boom/Stick Option (Mex) 1 | One-Piece Boom/Stick 5'11" (1800mm) |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 26.09 ft in (7950 mm) |
| Max Reach Along Ground | 30.19 ft in (9200 mm) |
| Max Digging Depth | 19.53 ft in (5950 mm) |
| Boom/Stick Option (Mex) 2 | One-Piece Boom/Stick 7'6.5" (2300mm) |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 25.27 ft in (7700 mm) |
| Max Reach Along Ground | 31.76 ft in (9680 mm) |
| Max Digging Depth | 21.33 ft in (6500 mm) |
| Boom/Stick Option (Mex) 3 | One-Piece Boom/Stick 9'2" (2800mm) |
Boom/Stick Option (Mex) 4
| Max Cutting Height | 30.19 ft in (9200 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 29.7 ft in (9050 mm) |
| Max Digging Depth | 16.41 ft in (5000 mm) |
| Boom/Stick Option (Mex) 4 | Two-Piece Boom/Stick 5'11" (1800mm) |
Dimensions
| Wheelbase | 8.7 ft in (2650 mm) |
| Overall Width | 8.17 in (2490 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 11.98 ft in (3650 mm) |
| Height To Top Of Cab | 10.55 ft in (3213 mm) |
| Upper Structure Clearance | 4.19 ft in (1275 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF6L 913 |
| Gross Power | 143.5 hp (107 kw) |
| Displacement | 374.1 cu in (6.2 L) |
Operational
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 92.5 gal (350 L) |
| Hydraulic System Relief Valve Pressure | 4351.2 psi (30000 kPa) |
| Hydraulic Pump Flow Capacity | 85.6 gal/min (324 L/min) |
| Tire Size | dual 10.00-20 |
