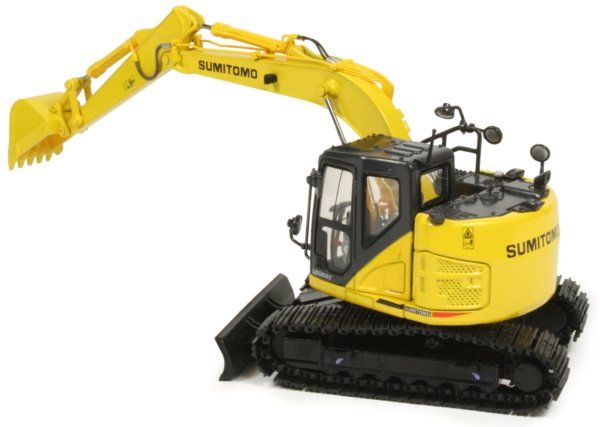

Sumitomo SH135XU-3B
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.3 ft in (7405 mm) |
| Shipping Height Of Unit | 9.22 ft in (2810 mm) |
| Max Loading Height | 19.79 ft in (6030 mm) |
| Max Reach Along Ground | 23.63 ft in (7200 mm) |
| Max Vertical Wall Digging Depth | 11.78 ft in (3590 mm) |
| Max Digging Depth | 15.98 ft in (4870 mm) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.14 ft in (2785 mm) |
| Tail Swing Radius | 4.86 ft in (1480 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AJ 4IJJIX |
| Gross Power | 95.1 hp (70.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 177 cu in (2.9 L) |
Operational
| Operating Weight | 32628.5 lb (14800 kg) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 61.9 gal/min (234 L/min) |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
