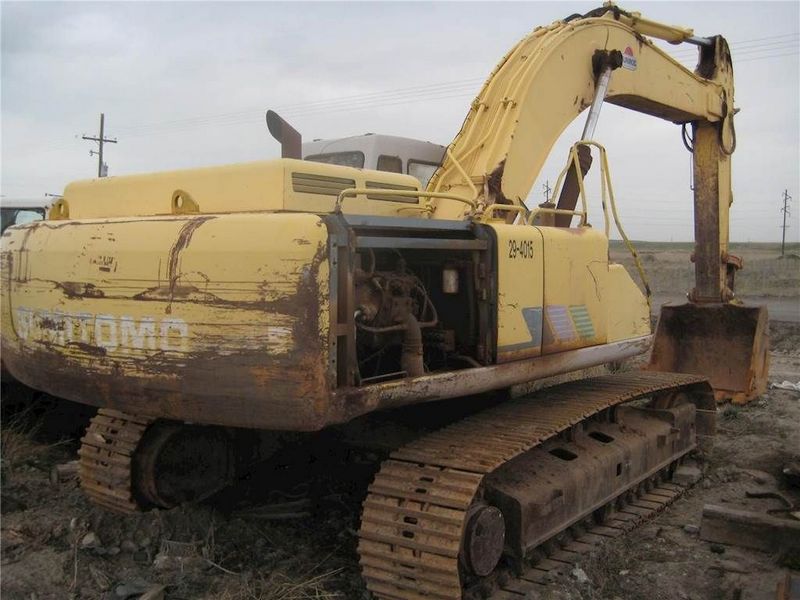

Sumitomo SH300-2
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.63 ft in (10860 mm) |
| Shipping Height Of Unit | 11.03 ft in (3360 mm) |
| Max Cutting Height | 33.73 ft in (10280 mm) |
| Max Loading Height | 23.59 ft in (7190 mm) |
| Max Reach Along Ground | 36.52 ft in (11130 mm) |
| Max Vertical Wall Digging Depth | 20.77 ft in (6330 mm) |
| Max Digging Depth | 24.25 ft in (7390 mm) |
| Boom/Stick Option (Hex) 1 | Boom / Stick 3230mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 35.63 ft in (10860 mm) |
| Max Cutting Height | 31.96 ft in (9740 mm) |
| Shipping Height Of Unit | 11.03 ft in (3360 mm) |
| Max Loading Height | 22.02 ft in (6710 mm) |
| Max Reach Along Ground | 33.37 ft in (10170 mm) |
| Max Vertical Wall Digging Depth | 16.44 ft in (5010 mm) |
| Max Digging Depth | 20.9 ft in (6370 mm) |
| Boom/Stick Option (Hex) 2 | Boom / Stick 2210mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 35.63 ft in (10860 mm) |
| Max Cutting Height | 32.75 ft in (9980 mm) |
| Max Loading Height | 22.68 ft in (6910 mm) |
| Shipping Height Of Unit | 11.03 ft in (3360 mm) |
| Max Reach Along Ground | 34.68 ft in (10570 mm) |
| Max Vertical Wall Digging Depth | 18.38 ft in (5600 mm) |
| Max Digging Depth | 22.31 ft in (6800 mm) |
| Boom/Stick Option (Hex) 3 | Boom / Stick 2630mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 35.63 ft in (10860 mm) |
| Shipping Height Of Unit | 11.03 ft in (3360 mm) |
| Max Cutting Height | 34.62 ft in (10550 mm) |
| Max Loading Height | 24.48 ft in (7460 mm) |
| Max Reach Along Ground | 38.92 ft in (11860 mm) |
| Max Digging Depth | 26.88 ft in (8190 mm) |
| Max Vertical Wall Dig Depth | 23.33 ft in (7110 mm) |
| Boom/Stick Option (Hex) 4 | Boom / Stick 4030mm |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 11.82 ft in (3600 mm) |
| Tail Swing Radius | 10.6 ft in (3230 mm) |
| Removal Counterweight Clearance | 3.91 ft in (1190 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 9.52 psi (65.64 kPa) |
| Max Travel Speed | 3.11 mph (5 km/h) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D22T |
| Net Power | 226.7 hp (169 kw) |
| Power Measured @ | 1650 rpm |
| Displacement | 679.9 cu in (11.2 L) |
Operational
| Operating Weight | 69004.7 lb (31300 kg) |
| Fuel Capacity | 153.3 gal (580 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Hydraulic System Relief Valve Pressure | 4622 psi (31867.6 kPa) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 1.9 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 1.5 yd3 (1.1 m3) |
| Maximum Bucket Capacity | 2.1 yd3 (1.6 m3) |
