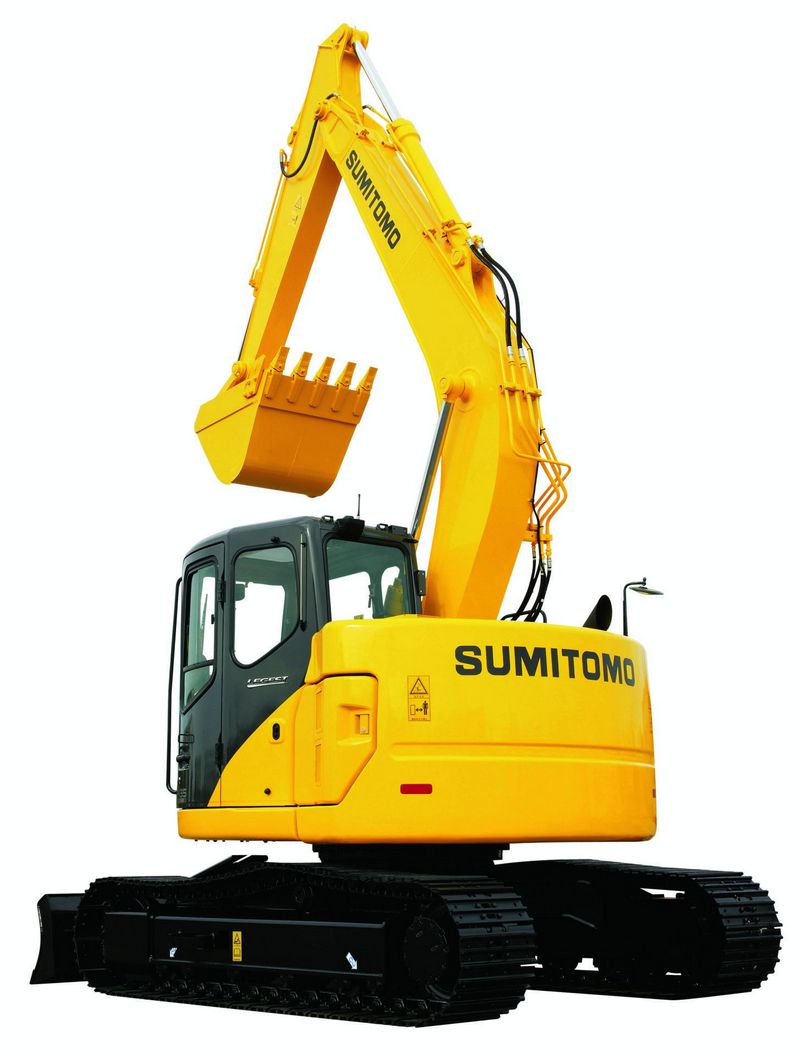

Sumitomo SH135X-3
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.76 ft in (7240 mm) |
| Shipping Height Of Unit | 9.03 ft in (2750 mm) |
| Max Cutting Height | 30.53 ft in (9305 mm) |
| Max Loading Height | 22.66 ft in (6905 mm) |
| Max Reach Along Ground | 26.92 ft in (8205 mm) |
| Max Vertical Wall Digging Depth | 15.9 ft in (4845 mm) |
| Max Digging Depth | 17.95 ft in (5470 mm) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Height To Top Of Cab | 9.03 ft in (2750 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.14 ft in (2785 mm) |
| Tail Swing Radius | 7.44 ft in (2265 mm) |
| Removal Counterweight Clearance | 2.89 ft in (880 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Ground Pressure | 6.1 psi (42 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-4BG1T |
| Net Power | 87 hp (64.9 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 264.2 cu in (4.4 L) |
Operational
| Operating Weight | 28660.1 lb (13000 kg) |
| Fuel Capacity | 43.6 gal (165 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
