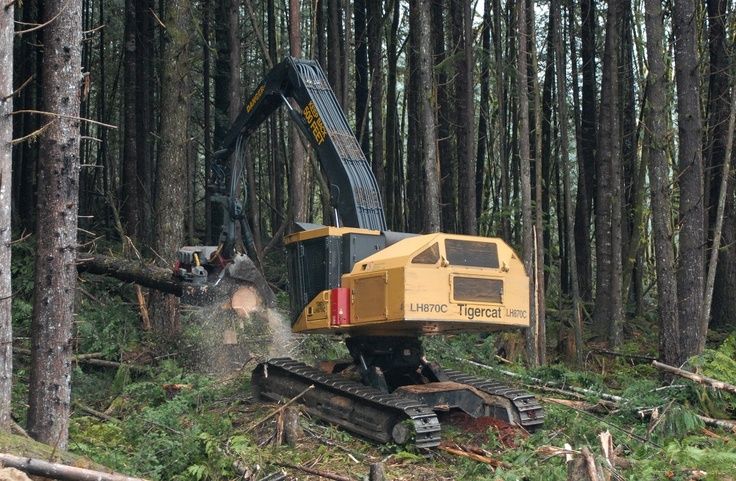

Tigercat LH870C
Contents:
Boom
| Max Reach W/ Head | 30.84 ft in (9400 mm) |
| Lift Capacity At Max Reach | 11816.78 lb (5360 kg) |
Dimensions
| Overall Width | 10.93 ft in (3330 mm) |
| Height To Top Of Cab | 12.18 ft in (3710 mm) |
| Side Tilt | 16 degrees |
| Forward Tilt | 20 degrees |
Undercarriage
| Track Length | 15.59 ft in (4750 mm) |
| Ground Clearance | 2.33 ft in (710 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Track Pitch | 8.47 in (215 mm) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Engine Make | 2347 |
| Engine Model | QSL9 |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight | 79200 lb (35924.6 kg) |
| Fuel Capacity | 256.3 gal (970 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 110 amps |
