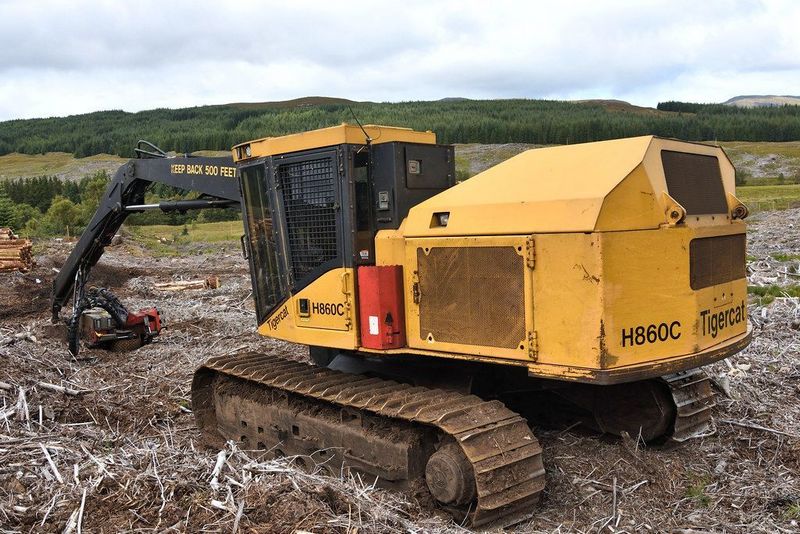

Tigercat H860C
Contents:
Boom
| Max Reach W/ Head | 30.84 ft in (9400 mm) |
| Lift Capacity At Max Reach | 11816.78 lb (5360 kg) |
Dimensions
| Overall Width | 10.75 ft in (3275 mm) |
| Height To Top Of Cab | 10.83 ft in (3300.99 mm) |
Undercarriage
| Track Length | 14.6 ft in (4450 mm) |
| Ground Clearance | 2.33 ft in (710 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Track Pitch | 7.88 in (200 mm) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Engine Make | 2347 |
| Engine Model | QSL9 |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight | 60900 lb (27623.8 kg) |
| Fuel Capacity | 256.3 gal (970 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 110 amps |
