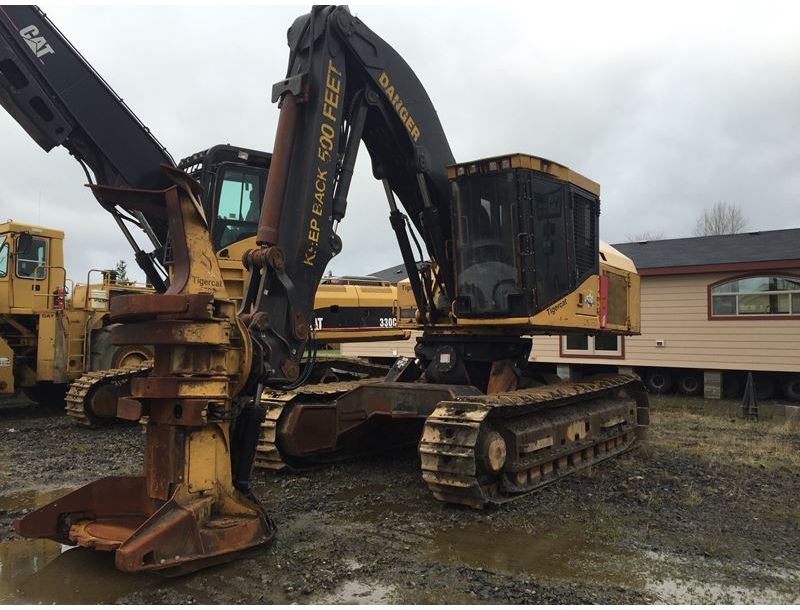

Tigercat LX870C
Browse All Tigercat or Feller Buncher Models
Contents:
Boom
| Min Cut Radius | 15.75 ft in (4800 mm) |
| Max Cut Radius | 27.76 ft in (8460 mm) |
| Bare Pin Lift At Max Reach | 17306.29 lb (7850 kg) |
Dimensions
| Overall Width | 10.93 ft in (3330 mm) |
| Height To Top Of Cab | 12.18 ft in (3710 mm) |
| Ground Clearance | 2.33 in (710 mm) |
Undercarriage
| Shoe Size | 24.02 in (610 mm) |
| Track Pitch | 8.47 in (215 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSL9 |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight W/O Attachment | 77000 lb (34926.7 kg) |
| Fuel Capacity | 256.3 gal (970 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 110 amps |
Upperstructure Leveling
| Front | 20 degrees |
| Rear | 7 degrees |
| Side | 15 degrees |
