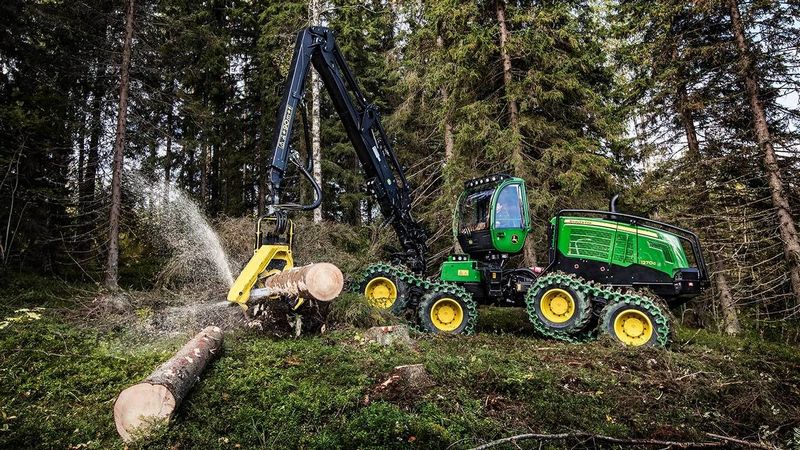

John Deere 1270G
Browse All John Deere or Harvester Models
Contents:
Dimensions
| Overall Width | 9.01 ft in (2746 mm) |
| Wheelbase | 13.69 ft in (4170 mm) |
| Ground Clearance | 25.75 in (654 mm) |
| Carrier/Base Length | 25.23 ft in (7.69 m) |
| Horizontal Reach | 28.22 ft in (8.6 m) |
| Transport Height | 12.5 ft in (3810 mm) |
Driveline
| Engine Model | 6090HTJ |
| Engine Manufacturer | John Deere |
| Engine Output | 254.8 hp (190 kw) |
| Engine Torque | 922 lb ft (1250 Nm) |
| Drive Configuration | 6 x 6 |
| Std Tire Size Front | 26.5 |
| Std Tire Size Rear | 34 |
| Emission Rating | Tier 3 |
| Rated Speed | 1900 rpm |
| Transmission Type | Hydrostatic-Mechanical |
Capacities
| Fuel Tank - Diesel | 118.9 gal (450 L) |
| Hydraulic Tank | 79.3 gal (300 L) |
| Number Of Alternators | 1 |
| Reference Harvesting Head | H480C |
| Felling Diameter | 28 in (710 mm) |
| Delimbing Diameter | 26.8 in (680 mm) |
| Delimbing Feed Rate | 5.3 m/sec |
| Delimbing Feed Force | 30 kN |
| Travel Speed | 13.7 mph (22 km/h) |
| System Voltage | 24 V |
| Pump Capacity | 2.3 in (5.8 cm) |
Description
| Crane Model | CH7 |
Weights
| Weight - With Reference Head | 48942.7 lb (22200 kg) |
| Weight - Without Reference Head | 46208.9 lb (20960 kg) |
| Operating Weight | 48942.7 lb (22200 kg) |
