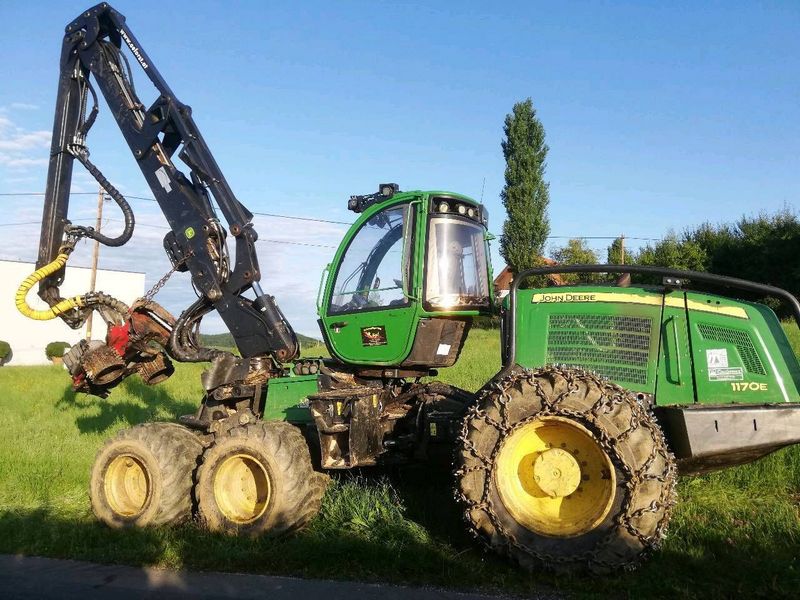

John Deere 1170E
Browse All John Deere or Harvester Models
Contents:
Dimensions
| Overall Width | 8.93 ft in (2720 mm) |
| Wheelbase | 12.47 ft in (3800 mm) |
| Ground Clearance | 24.61 in (625 mm) |
| Carrier/Base Length | 23.56 ft in (7.18 m) |
| Horizontal Reach | 32.81 ft in (10 m) |
| Transport Height | 12.21 ft in (3720 mm) |
Driveline
| Engine Model | PowerTech Plus 6068 |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 194.5 hp (145 kw) |
| Engine Torque | 689.7 lb ft (935 Nm) |
| Drive Configuration | 6 x 6 |
| Std Tire Size Front | 24.5 - 20 |
| Std Tire Size Rear | 34 - 14 |
| Emission Rating | Interim Tier 4 |
| Rated Speed | 1900 rpm |
| Transmission Type | Hydrostatic-Mechanical |
Capacities
| Fuel Tank - Diesel | 79.3 gal (300 L) |
| Hydraulic Tank | 45 gal (170 L) |
| Number Of Alternators | 1 |
| Reference Harvesting Head | H754 |
| Felling Diameter | 24.5 in (620 mm) |
| Delimbing Diameter | 22.1 in (560 mm) |
| Delimbing Feed Rate | 6 m/sec |
| Delimbing Feed Force | 22.1 kN |
| Travel Speed | 15 mph (24 km/h) |
| System Voltage | 24 V |
| Pump Capacity | 2.3 in (5.6 cm) |
Description
| Crane Model | CH6 |
Weights
| Weight - With Reference Head | 39242.3 lb (17800 kg) |
| Weight - Without Reference Head | 37434.5 lb (16980 kg) |
| Operating Weight | 39242.3 lb (17800 kg) |
