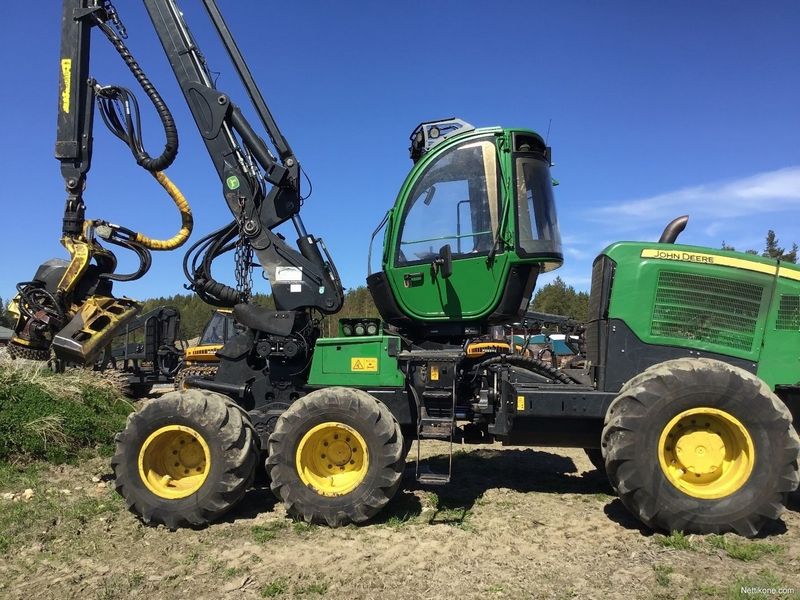

John Deere 1070E
Browse All John Deere or Harvester Models
Contents:
Dimensions
| Overall Width | 8.73 ft in (2660 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Ground Clearance | 22.64 in (575 mm) |
| Carrier/Base Length | 22.71 ft in (6.92 m) |
| Horizontal Reach | 28.22 ft in (8.6 m) |
| Transport Height | 12.06 ft in (3675 mm) |
Driveline
| Engine Model | PowerTech Plus 6068 |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 182.4 hp (136 kw) |
| Engine Torque | 627 lb ft (850 Nm) |
| Drive Configuration | 6 x 6 |
| Std Tire Size Front | 22.5 - 16 |
| Std Tire Size Rear | 34 - 14 |
| Emission Rating | Interim Tier 4 |
| Rated Speed | 1900 rpm |
| Transmission Type | Hydrostatic-Mechanical |
Capacities
| Fuel Tank - Diesel | 79.3 gal (300 L) |
| Hydraulic Tank | 45 gal (170 L) |
| Number Of Alternators | 1 |
| Reference Harvesting Head | H412 |
| Felling Diameter | 18.6 in (470 mm) |
| Delimbing Diameter | 20.9 in (530 mm) |
| Delimbing Feed Rate | 6 m/sec |
| Delimbing Feed Force | 17 kN |
| Travel Speed | 15 mph (24 km/h) |
| System Voltage | 24 V |
| Pump Capacity | 2.2 in (5.5 cm) |
Description
| Crane Model | 180S |
Weights
| Weight - With Reference Head | 34722.9 lb (15750 kg) |
| Weight - Without Reference Head | 33106.9 lb (15017 kg) |
| Operating Weight | 34722.9 lb (15750 kg) |
