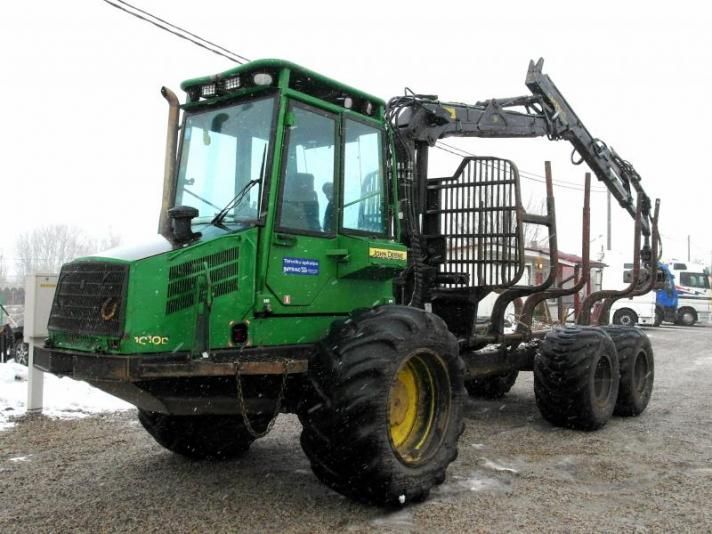

John Deere 1010D Four-Wheel Long Frame
Browse All John Deere or Forwarder Models
Contents:
Dimensions
| Length | 30.52 ft in (9300 mm) |
| Wheelbase | 15.75 ft in (4800 mm) |
| Width Over Tires | 8.8 ft in (2680 mm) |
| Height To Top Of Crane | 12.14 ft in (3700 mm) |
| Ground Clearance | 1.99 ft in (605 mm) |
| Length Of Bunk Area | 16.08 ft in (4900 mm) |
| Width Of Bunk Area | 8.73 ft in (2660 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045H |
| Power | 115 hp (85.8 kw) |
| Torque | 367 lb ft (497.6 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight - 4wd | 27557.8 lb (12500 kg) |
| Fuel Capacity | 29.9 gal (113 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Front/Rear Tire Size - 4wd | 600x34/14 |
Transmission
| Transmission Type | hydrostatic/mechanical |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 13.7 mph (22 km/h) |
Hydraulic
| Pump Type | variable displacement pump |
| Flow Capacity | 39.7 gal/min (150 L/min) |
| Relief Valve Pressure | 3480 psi (23993.8 kPa) |
Bunk
| Load Weight - 4wd | 22046.3 lb (10000 kg) |
| Load Area | 37.7 ft2 (3.5 m2) |
Crane
| Crane Type | Timberjack CF 5 72 |
| Max Reach | 23.7 ft in (7200 mm) |
| Gross Lift Torque | 75231.4 lb ft (102000 Nm) |
| Gross Slew Torque | 17996.6 lb ft (24400 Nm) |
