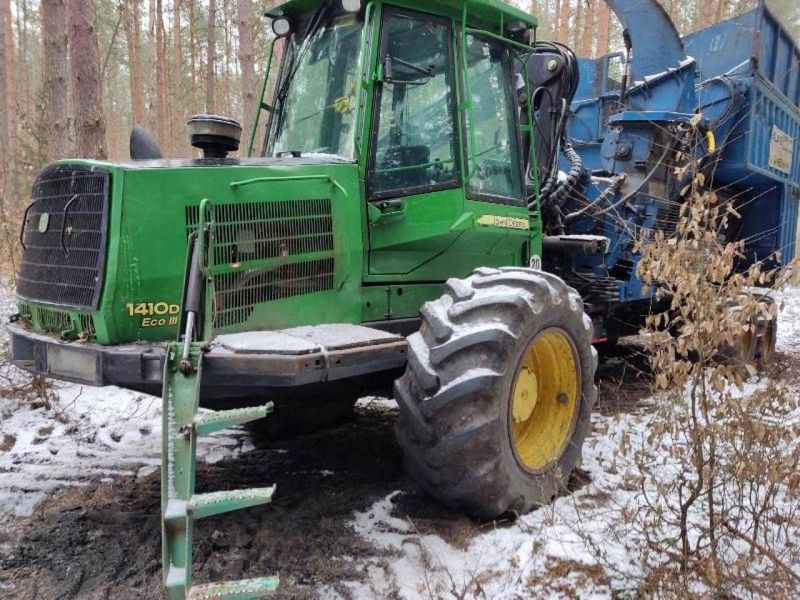

John Deere 1410D
Browse All John Deere or Forwarder Models
Contents:
Dimensions
| Length | 34.13 ft in (10400 mm) |
| Wheelbase | 19.2 ft in (5850 mm) |
| Width Over Tires | 10.08 ft in (3070 mm) |
| Height To Top Of Crane | 12.14 ft in (3700 mm) |
| Ground Clearance | 1.97 ft in (600 mm) |
| Length Of Bunk Area | 17.72 ft in (5400 mm) |
| Width Of Bunk Area | 9.06 ft in (2760 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Power | 173 hp (129.1 kw) |
| Torque | 575 lb ft (779.6 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight - 8wd | 38580 lb (17499.6 kg) |
| Fuel Capacity | 43.6 gal (165 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Front/Rear Tire Size - 8wd | 700x26.5/700x26.5 |
Transmission
| Transmission Type | hydrostatic/mechanical |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 13.7 mph (22 km/h) |
Hydraulic
| Pump Type | variable displacement |
| Flow Capacity | 55.5 gal/min (210 L/min) |
| Relief Valve Pressure | 3480 psi (24000 kPa) |
Bunk
| Load Weight - 8wd | 30865 lb (14000.2 kg) |
| Load Area | 49.6 ft2 (4.6 m2) |
Crane
| Crane Type | Timberjack CF 7 72 |
| Max Reach | 23.7 ft in (7200 mm) |
| Gross Lift Torque | 92195.3 lb ft (125000 Nm) |
| Gross Slew Torque | 23602 lb ft (32000 Nm) |
