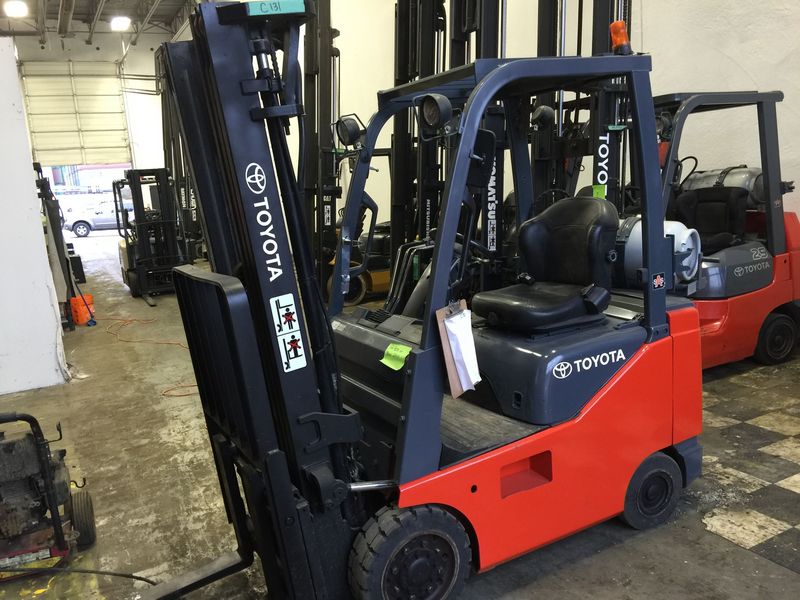

Toyota 8FGCU15
Contents:
Dimensions
| Length To Fork Face | 6.86 ft in (2090.42 mm) |
| Overall Width | 3.11 ft in (945 mm) |
| Ground Clearance | 2.56 in (65 mm) |
| Height To Top Of Overhead Guard | 6.68 ft in (2035 mm) |
| Max Fork Height | 10.95 ft in (3335 mm) |
| Turning Radius | 5.65 ft in (1720 mm) |
Mast
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 2976.25 lb (1350 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 4Y-ECS |
| Power | 48 hp (35.8 kw) |
| Torque | 118 lb ft (160 Nm) |
| Power Measured @ | 2250 rpm |
| Displacement | 136 cu in (2.3 L) |
| Torque Measured @ | 2100 rpm |
Operational
| Auxiliary Hydraulic Flow | 16 gal/min (60.6 L/min) |
| Operating Weight | 5886.4 lb (2670 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
| Fuel Capacity | 7.2 gal (27 L) |
| Hydraulic System Relief Valve Pressure | 2275 psi (15685.6 kPa) |
Transmission
| Speed Ranges (Forwards/Backward) | 1/1 |
| Transmission Type | Power shift |
