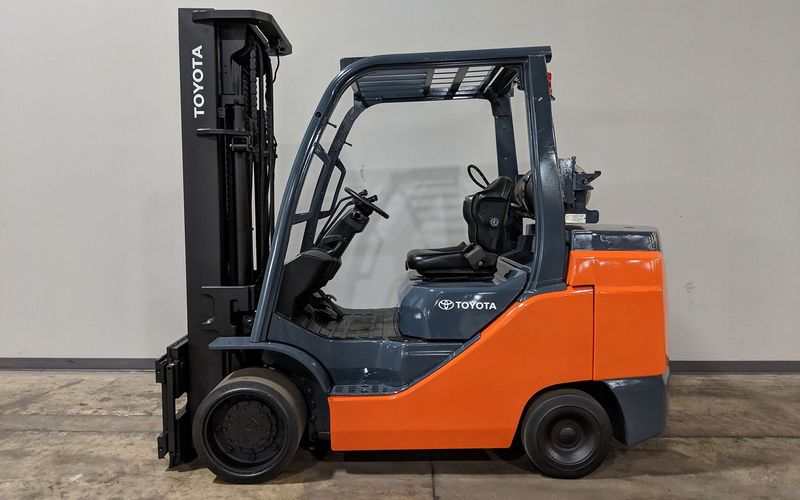

Toyota 8FGC45U
Contents:
Dimensions
| Length To Fork Face | 8.93 ft in (2720 mm) |
| Overall Width | 4.66 ft in (1420 mm) |
| Wheelbase | 5.16 ft in (1570 mm) |
| Height To Top Of Overhead Guard | 6.96 ft in (2120 mm) |
| Max Fork Height | 10.01 ft in (3050 mm) |
| Fork Spread Max | 3.81 ft in (1160 mm) |
| Fork Spread Min-Outer Edge To Edge | 11.82 in (300 mm) |
| Forward Tilt | 5 degrees |
| Free Lift | 4.34 in (110 mm) |
| Gradeability | 37 % |
| Turning Radius | 7.85 ft in (2390 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Load Capacity | 9920.81 lb (4500 kg) |
| Max Fork Spread | 45.67 in (1160 mm) |
| Lift Height-Smallest Mast | 83.08 in (2110 mm) |
| Lift Height- Largest Mast | 120.08 in (3050 mm) |
Electrical System
| Battery | 12 V /48 Ah |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 1FS |
| Power | 84 hp (62.7 kw) |
| Torque | 213.9 lb ft (290 Nm) |
| Power Measured @ | 2350 rpm |
| Displacement | 224 cu in (3.7 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Auxiliary Hydraulic Flow | 16 gal/min (60.6 L/min) |
| Operating Weight | 5886.4 lb (2670 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
| Fuel Capacity | 7.2 gal (27 L) |
| Hydraulic System Relief Valve Pressure | 2275 psi (15685.6 kPa) |
Performance
| Drawbar Pull Max -Full Load | 9920.9 lb (4500 kg) |
| Drawbar Pull Max -No Load | 2447.2 lb (1110 kg) |
Transmission
| Speed Ranges (Forwards/Backward) | 1/1 |
| Transmission Type | Power shift |
Weights
| Weight | 14506.5 lb (6580 kg) |
