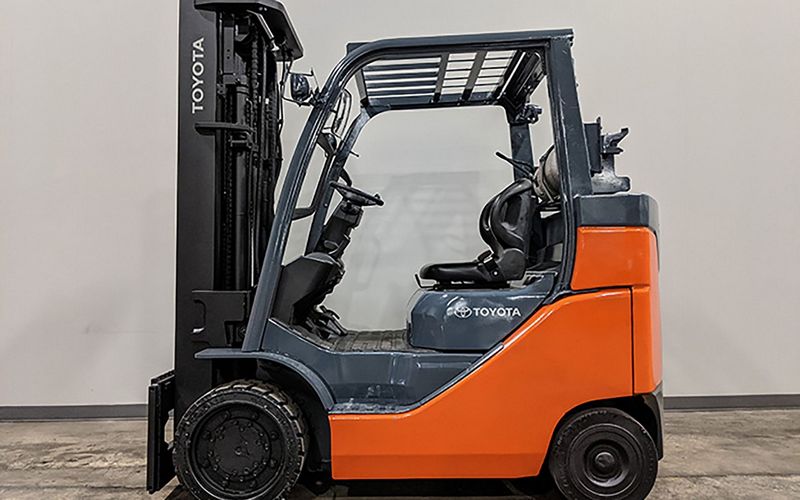

Toyota 8FGC35U
Contents:
Dimensions
| Length To Fork Face | 8.62 ft in (2625 mm) |
| Overall Width | 4.17 ft in (1270 mm) |
| Max Fork Height | 10.01 ft in (3050 mm) |
| Free Lift | 4.34 in (110 mm) |
| Gradeability | 47 % |
| Fork Spread Max | 3.81 ft in (1160 mm) |
| Fork Spread Min-Outer Edge To Edge | 11.82 in (300 mm) |
| Forward Tilt | 5 degrees |
| Overhead Guard Height | 870.87 in (22120 mm) |
| Turning Radius | 7.49 ft in (2280 mm) |
Mast
| Lift Height-Smallest Mast | 81.11 in (2060 mm) |
| Lift Height- Largest Mast | 168.12 in (4270 mm) |
| Load Capacity | 7716.18 lb (3500 kg) |
| Load Center | 23.63 in (600 mm) |
Electrical System
| Battery | 12 V /48 Ah |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 1FS |
| Power | 84 hp (62.7 kw) |
| Torque | 213.9 lb ft (290 Nm) |
| Power Measured @ | 2350 rpm |
| Displacement | 224 cu in (3.7 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Auxiliary Hydraulic Flow | 16 gal/min (60.6 L/min) |
| Operating Weight | 5886.4 lb (2670 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
| Fuel Capacity | 7.2 gal (27 L) |
| Hydraulic System Relief Valve Pressure | 2275 psi (15685.6 kPa) |
Transmission
| Speed Ranges (Forwards/Backward) | 1/1 |
| Transmission Type | Power shift |
