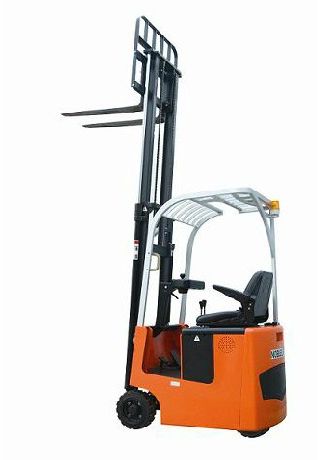

Noblelift FE3R06AC
Contents:
Dimensions
| Length To Fork Face | 4.24 ft in (1290 mm) |
| Overall Width | 2.78 ft in (845 mm) |
| Overall Height - Mast Lowered | 6.58 ft in (2005 mm) |
| Wheelbase | 2.67 ft in (812 mm) |
| Ground Clearance | 2.56 in (65 mm) |
| Height To Top Of Overhead Guard | 6.62 ft in (2015 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 3.42 ft in (1040 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 5.3 degrees |
| Max Fork Spread | 25.4 in (645 mm) |
| Lower Speed | 43.31 ft/min (13.2 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 1322.78 lb (600 kg) |
| Lift Speed | 59.06 ft/min (18 m/min) |
Engine
| Power | 3 hp (2.2 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 3836.1 lb (1740 kg) |
| Tire Type | solid rubber front 13x41/2x8 rear 254x82 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 5.6 mph (9 km/h) |
