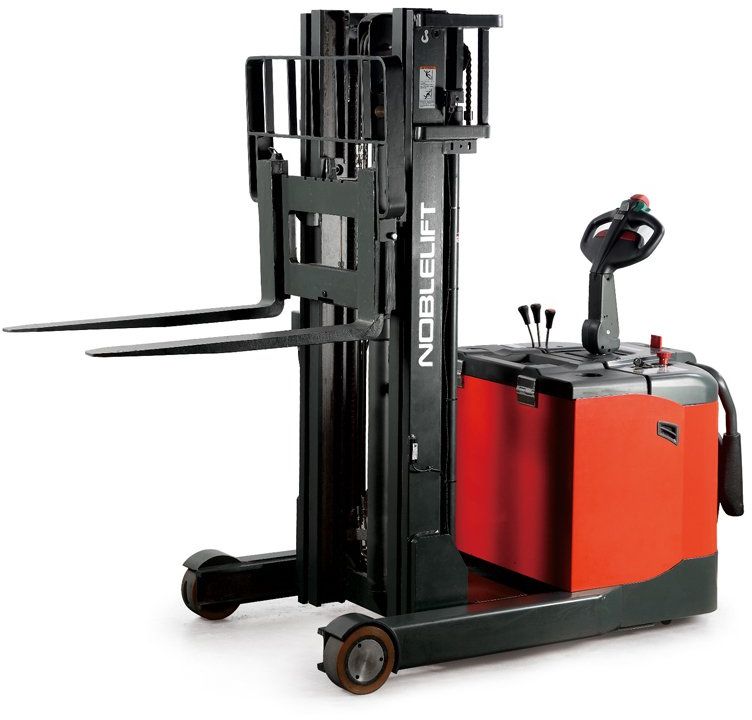

Noblelift FD30A
Contents:
Dimensions
| Length To Fork Face | 8.84 ft in (2693 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 6.8 ft in (2070 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.32 in (135 mm) |
| Height To Top Of Overhead Guard | 6.86 ft in (2090 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 7.94 ft in (2420 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 43.31 in (1100 mm) |
| Lower Speed | 82.68 ft/min (25.2 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lift Speed | 104.34 ft/min (31.8 m/min) |
Engine
| Engine Model | 490BPG |
| Power | 49.7 hp (37 kw) |
| Displacement | 155.1 cu in (2.6 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 9634.3 lb (4370 kg) |
| Tire Type | pneumatic front 28x9-15 rear 6.50x10 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
