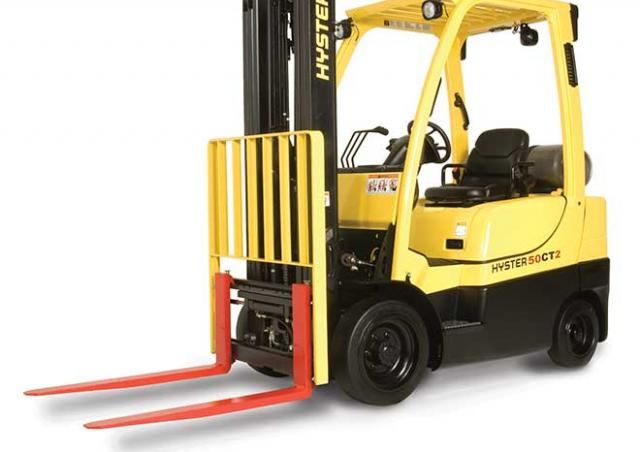

Hyster S40CT2
Contents:
Dimensions
| Length To Fork Face | 7.69 ft in (2341 mm) |
| Overall Width | 3.51 ft in (1068 mm) |
| Overall Height - Mast Lowered | 6.68 ft in (2035 mm) |
| Wheelbase | 4.76 ft in (1450 mm) |
| Ground Clearance | 4.57 in (116 mm) |
| Height To Top Of Overhead Guard | 6.77 ft in (2062 mm) |
| Max Fork Height | 14.19 ft in (4325 mm) |
| Gradeability | 30 % |
| Right Angle Stack | 8.04 ft in (2450 mm) |
| Turning Radius | 6.36 ft in (1937 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 96 ft/min (29.27 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | 124 ft/min (37.8 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | PSI 2.4L |
| Power | 44 hp (32.9 kw) |
| Torque | 118 lb ft (160 Nm) |
| Power Measured @ | 2600 rpm |
| Displacement | 143 cu in (2.4 L) |
| Torque Measured @ | 1200 rpm |
| Fuel Type | LP/Gas |
Operational
| Operating Weight | 7616 lb (3454.6 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.4 mph (18.4 km/h) |
| Drawbar Pull | 3020 lb (1369.9 kg) |
| Front Tire Size | 21 x 7 x 15 |
| Hydraulic System Relief Valve Pressure | 2306 psi (15899.3 kPa) |
| Rear Tire Size | 16 x 5 x 10.5 |
| Hydraulic Tank | 7.9 gal (30 L) |
| Axle Load - Front | 2970 lb (1347.2 kg) |
| Axle Load - Rear | 4646 lb (2107.4 kg) |
