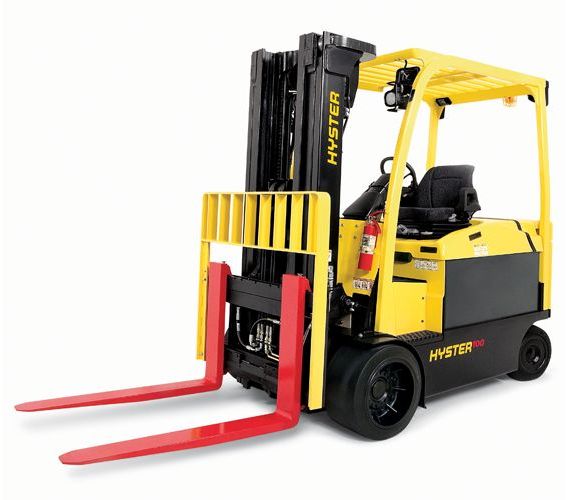

Hyster E100XN
Contents:
Dimensions
| Length To Fork Face | 9.16 ft in (2790 mm) |
| Overall Width | 4.34 ft in (1320 mm) |
| Overall Height - Mast Lowered | 7.02 ft in (2138 mm) |
| Wheelbase | 5.71 ft in (1739 mm) |
| Ground Clearance | 3.63 in (92 mm) |
| Height To Top Of Overhead Guard | 3.12 ft in (949 mm) |
| Max Fork Height | 1.07 ft in (324 mm) |
| Front Tread Range | 39.97 in (1015 mm) |
| Gradeability | 11.9 % |
| Rear Tread Range | 38.27 in (972 mm) |
| Right Angle Stack | 13.17 ft in (4012 mm) |
| Turning Radius | 7.69 ft in (2341 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Capacity | 10000.17 lb (4536 kg) |
| Max Fork Spread | 158.71 in (4031 mm) |
| Lower Speed | 73 ft/min (22.26 m/min) |
| Lift Speed | 71 ft/min (21.65 m/min) |
| Load Center | 24.02 in (610 mm) |
Engine
| Engine Make | Hyster |
| Engine Model | E100XN |
Operational
| Operating Weight | 12299.6 lb (5579 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.4 mph (16.6 km/h) |
| Drawbar Pull | 3322 lb (1506.9 kg) |
| Front Tire Size | 22 x 12 x 16 |
| Rear Tire Size | 18 x 7 x 12.1 |
| Axle Load - Front | 7708 lb (3496.3 kg) |
| Axle Load - Rear | 10139 lb (4599 kg) |
