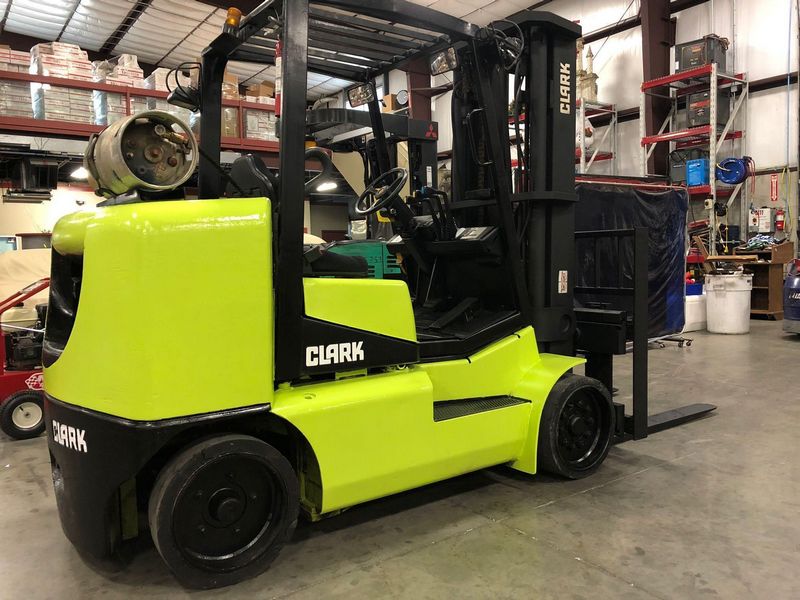

Clark Michigan CGC55
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9 ft in (2741 mm) |
| Overall Width | 4.57 ft in (1392 mm) |
| Overall Height - Mast Lowered | 7.49 ft in (2281 mm) |
| Wheelbase | 5.88 ft in (1790 mm) |
| Ground Clearance | 3.78 in (96 mm) |
| Height To Top Of Overhead Guard | 7.27 ft in (2215 mm) |
| Max Fork Height | 14.07 ft in (4288 mm) |
| Right Angle Stack | 9.86 ft in (3005 mm) |
| Turning Radius | 8.33 ft in (2537 mm) |
Mast
| Mast Tip Forward | 9 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 77 ft/min (23.47 m/min) |
| Max Fork Spread | 48 in (1219.2 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 12000 lb (5443.11 kg) |
| Lift Speed | 76.1 ft/min (23.2 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | Vortec 4300LT |
| Power | 93 hp (69.4 kw) |
| Torque | 235 lb ft (318.7 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 16881 lb (7657.1 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.7 mph (18.9 km/h) |
