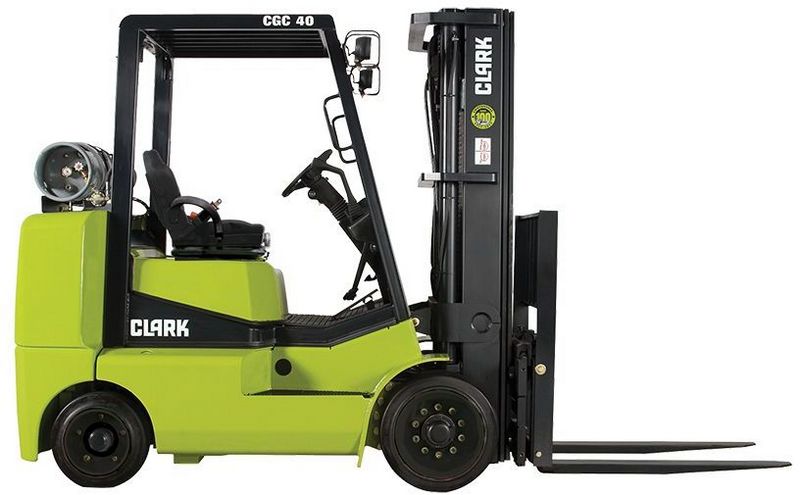

Clark Michigan CGC40
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8 ft in (2438 mm) |
| Overall Width | 4.24 ft in (1290 mm) |
| Overall Height - Mast Lowered | 7.43 ft in (2264 mm) |
| Wheelbase | 5.16 ft in (1570 mm) |
| Ground Clearance | 3.82 in (97 mm) |
| Height To Top Of Overhead Guard | 7.27 ft in (2215 mm) |
| Max Fork Height | 15.68 ft in (4778 mm) |
| Right Angle Stack | 8.9 ft in (2710 mm) |
| Turning Radius | 7.45 ft in (2270 mm) |
Mast
| Mast Tip Forward | 9 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 78.1 ft/min (23.81 m/min) |
| Max Fork Spread | 40 in (1016 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 8000 lb (3628.74 kg) |
| Lift Speed | 101 ft/min (30.79 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | Vortec 4300LT |
| Power | 93 hp (69.4 kw) |
| Torque | 235 lb ft (318.7 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 12921 lb (5860.9 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.2 mph (19.7 km/h) |
