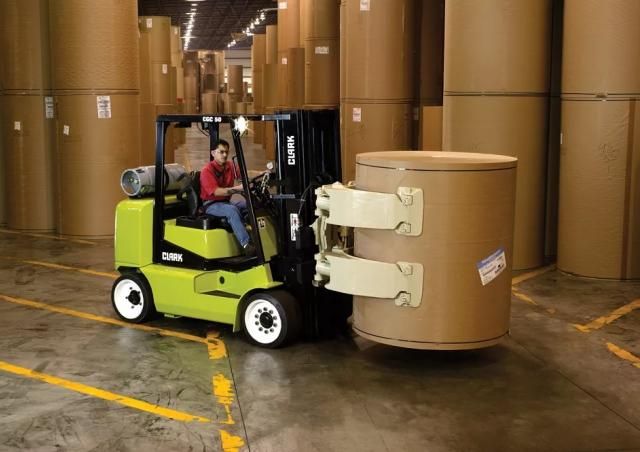

Clark Michigan CGC50
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.77 ft in (2672 mm) |
| Overall Width | 4.57 ft in (1392 mm) |
| Overall Height - Mast Lowered | 7.49 ft in (2281 mm) |
| Wheelbase | 5.88 ft in (1790 mm) |
| Ground Clearance | 3.78 in (96 mm) |
| Height To Top Of Overhead Guard | 7.27 ft in (2215 mm) |
| Max Fork Height | 14.86 ft in (4529 mm) |
| Right Angle Stack | 9.67 ft in (2946 mm) |
| Turning Radius | 8.19 ft in (2494 mm) |
Mast
| Mast Tip Forward | 9 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 78 ft/min (23.78 m/min) |
| Max Fork Spread | 48 in (1219.2 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 10000 lb (4535.93 kg) |
| Lift Speed | 89 ft/min (27.13 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | Vortec 4300LT |
| Power | 93 hp (69.4 kw) |
| Torque | 235 lb ft (318.7 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 14852 lb (6736.8 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.1 mph (19.5 km/h) |
