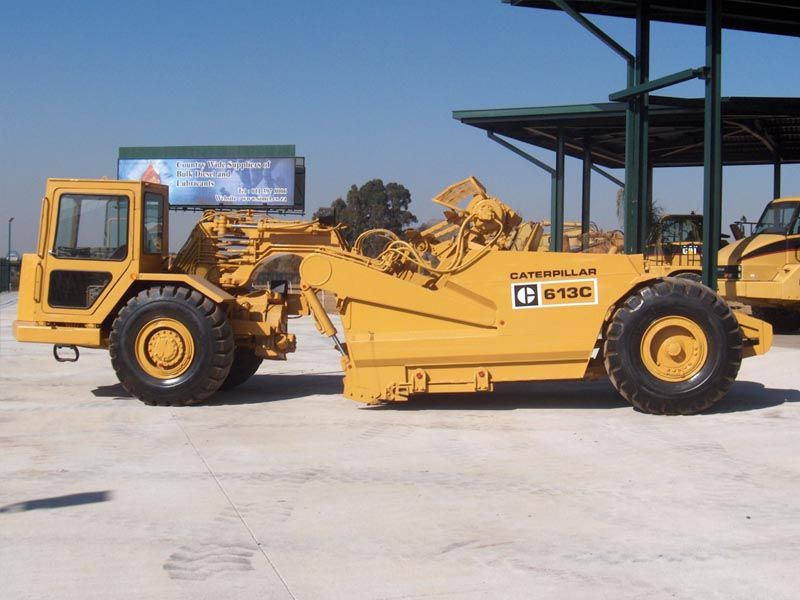

Caterpillar 613C
Contents:
| Overall Length | 32.81 ft in (10000 mm) |
| Overall Width | 8.01 ft in (2440 mm) |
| Overall Height | 10.04 ft in (3060 mm) |
| Wheelbase | 20.54 ft in (6260 mm) |
| Make | Caterpillar |
| Model | 3208 |
| Gross Power | 175 hp (130.5 kw) |
| Displacement | 634.7 cu in (10.4 L) |
| Fuel Capacity | 66.1 gal (250 L) |
| Tire Size | 18.00-25 16PR (E-2) |
| Number Of Forward Gears | 6 |
| Max Speed Forward | 24.3 mph (39 km/h) |
| Total Operating - Empty | 32341.9 lb (14670 kg) |
| Front Axle - Empty | 20375.2 % |
| Rear Axle - Empty | 11966.7 % |
| Total Operating - Loaded | 58334.4 lb (26460 kg) |
| Front Axel - Loaded | 28583 lb (12965 kg) |
| Rear Axle - Loaded | 29751.4 % |
| Rated Payload | 25992.6 lb (11790 kg) |
| Heaped Capacity | 11 yd3 (8.4 m3) |
| Max Depth Of Cut | 6.3 in (160 mm) |
| Width Of Cut | 7.8 ft in (2350 mm) |
