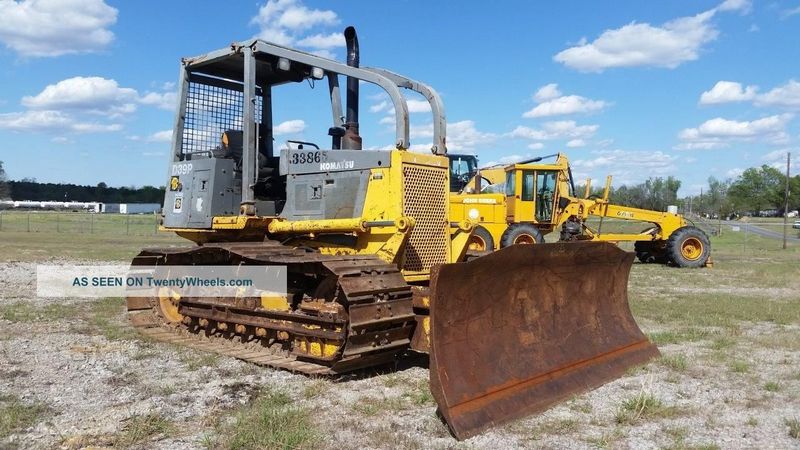

Komatsu D39P-1
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 10.95 ft in (3336 mm) |
| Width Over Tracks | 7.17 ft in (2185 mm) |
| Height To Top Of Cab | 6.37 ft in (1940 mm) |
| Length Of Track On Ground | 7.16 ft in (2180 mm) |
Undercarriage
| Track Gauge | 5.16 ft in (1570 mm) |
| Standard Shoe Size | 24.02 in (610 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | S4D102 |
| Displacement | 239 cu in (4 L) |
Operational
| Operating Weight | 16005.6 lb (7260 kg) |
| Fuel Capacity | 38.6 gal (146 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6 mph (9.5 km/h) |
| Max Speed - Reverse | 7.1 mph (11.3 km/h) |
