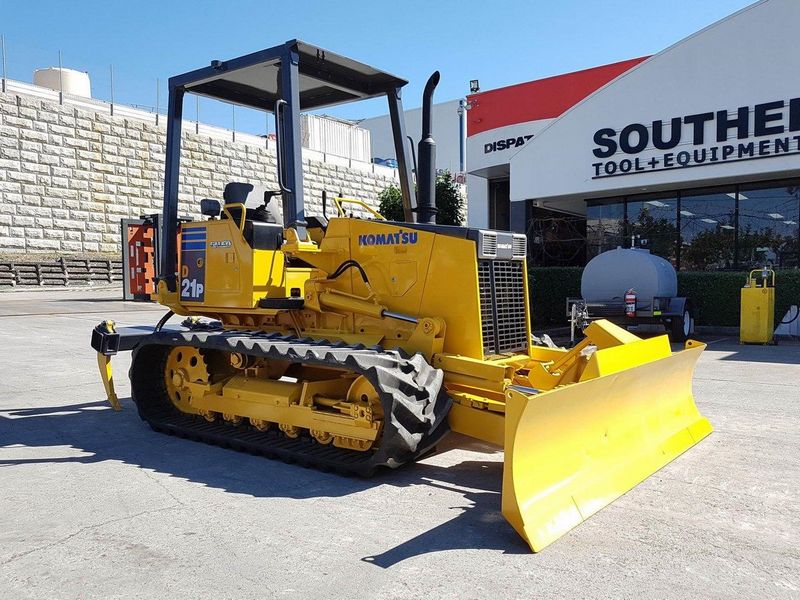

Komatsu D21P-3
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length Of Track On Ground | 5.5 ft in (1675 mm) |
| Ground Clearance | 1.24 ft in (375 mm) |
Undercarriage
| Track Gauge | 4.34 ft in (1320 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Ground Pressure | 2.7 psi (18.62 kPa) |
| Number Of Track Rollers Per Side | 5 |
Engine
| Gross Power | 37 hp (27.6 kw) |
Operational
| Operating Weight | 6970 lb (3161.6 kg) |
Standard Blade
| Width | 7.2 ft in (2180 mm) |
| Height | 23.1 in (585 mm) |
| Capacity | 1 yd3 (0.8 m3) |
| Cutting Depth | 10.9 in (275 mm) |
