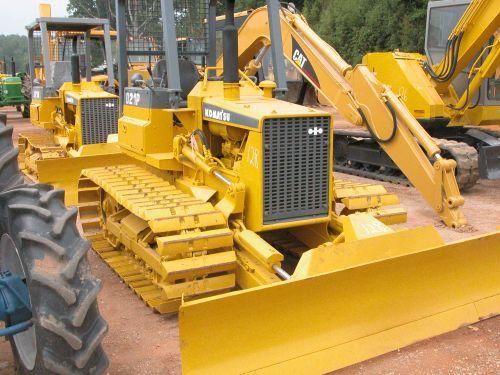

Komatsu D21P-5
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 5.98 ft in (1820 mm) |
| Height To Top Of Cab | 7.17 ft in (2185 mm) |
| Length Of Track On Ground | 5.53 ft in (1685 mm) |
| Ground Clearance | 1.24 ft in (375 mm) |
| Length W/O Blade | 8.09 ft in (2465 mm) |
Undercarriage
| Track Gauge | 4.3 ft in (1310 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 2.7 psi (18.62 kPa) |
Engine
| Gross Power | 39 hp (29.1 kw) |
Operational
| Operating Weight | 7230 lb (3279.5 kg) |
Standard Blade
| Width | 8.8 ft in (2680 mm) |
| Height | 22.3 in (565 mm) |
| Capacity | 1.2 yd3 (0.9 m3) |
| Cutting Depth | 12.6 in (320 mm) |
