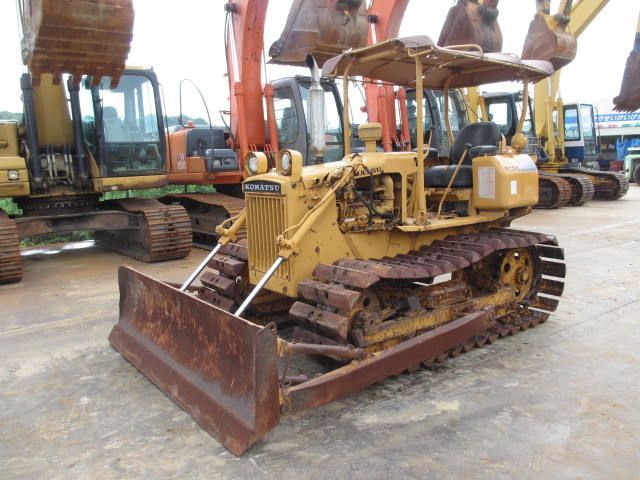

Komatsu D20P-3
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 10.62 ft in (3235 mm) |
| Width Over Tracks | 6.01 ft in (1830 mm) |
| Height To Top Of Cab | 6.93 ft in (2110 mm) |
| Length Of Track On Ground | 5.5 ft in (1675 mm) |
| Ground Clearance | 1.24 ft in (375 mm) |
| Length W/O Blade | 8.17 ft in (2490 mm) |
Undercarriage
| Track Gauge | 4.34 ft in (1320 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Shoes Per Side | 37 |
| Ground Pressure | 2.56 psi (17.66 kPa) |
| Track Pitch | 5.32 in (135 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D92-1A |
| Gross Power | 35 hp (26.1 kw) |
| Power Measured @ | 2450 rpm |
| Displacement | 158.7 cu in (2.6 L) |
Operational
| Operating Weight | 7936.7 lb (3600 kg) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 2 |
Standard Blade
| Width | 7.2 ft in (2180 mm) |
| Height | 23.1 in (585 mm) |
| Capacity | 1 yd3 (0.8 m3) |
| Cutting Depth | 10.9 in (275 mm) |
