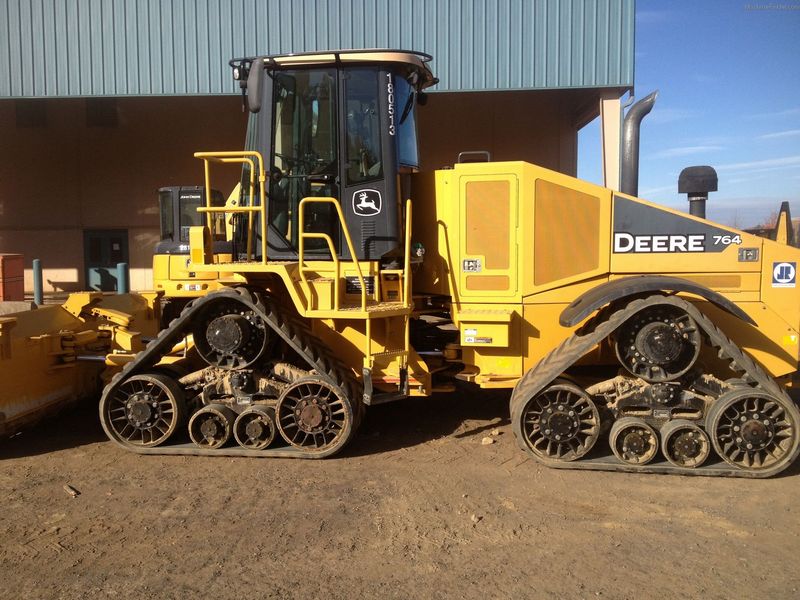

John Deere 764HSD
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 8.51 ft in (2591 mm) |
| Height To Top Of Cab | 10.25 ft in (3124 mm) |
Undercarriage
| Track Gauge | 6.5 ft in (1981 mm) |
| Ground Contact Area | 1272 in2 (0.83 m2) |
| Ground Pressure | 6.68 psi (46.06 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | 6068H |
| Gross Power | 200 hp (149.2 kw) |
| Net Power | 210 hp (156.6 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 703.7 lb ft (954 Nm) |
| Displacement | 415 cu in (6.8 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 33999.7 lb (15422 kg) |
| Fuel Capacity | 106 gal (401 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Engine Oil Capacity | 7.1 gal (26.5 L) |
| Hydraulic Fluid Capacity | 60 gal (227.1 L) |
Transmission
| Max Speed - Forward | 16 mph (25.7 km/h) |
| Max Speed - Reverse | 16 mph (25.7 km/h) |
Hydraulic System
| Relief Valve Pressure | 6650 psi (45850.1 kPa) |
| Pump Flow Capacity | 73.8 gal/min (279.4 L/min) |
Standard Blade
| Width | 11.1 ft in (3353 mm) |
| Height | 39.1 in (991 mm) |
| Capacity | 3.8 yd3 (3 m3) |
| Blade Angle (Both Directions) | 7 degrees |
| Cutting Depth | 29.1 in (739 mm) |
