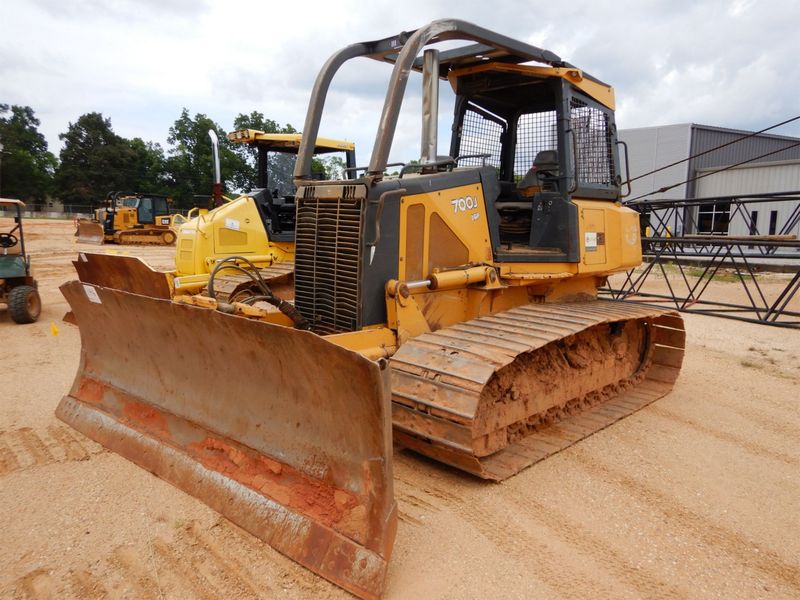

John Deere 700J LGP
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.67 ft in (4775 mm) |
| Width Over Tracks | 9 ft in (2743 mm) |
| Height To Top Of Cab | 9.83 ft in (2997 mm) |
| Length Of Track On Ground | 8.5 ft in (2591 mm) |
| Ground Clearance | 1.25 ft in (381 mm) |
Undercarriage
| Track Gauge | 6.5 ft in (1981 mm) |
| Standard Shoe Size | 30 in (762 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 4.65 psi (32 kPa) |
| Number Of Shoes Per Side | 39 |
| Ground Contact Area | 6120 in2 (3.95 m2) |
| Track Pitch | 7.5 in (190.5 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 115 hp (86 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 395 lb ft (537 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 28290 lb (12832 kg) |
| Fuel Capacity | 60 gal (227 L) |
| Cooling System Fluid Capacity | 5.6 gal (21.2 L) |
| Engine Oil Capacity | 5.6 gal (21.2 L) |
| Hydraulic Fluid Capacity | 13.5 gal (51.1 L) |
| Powertrain Fluid Capacity | 17.2 gal (65.1 L) |
| Final Drives Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 5.5 mph (8.9 km/h) |
| Max Speed - Reverse | 5.5 mph (8.9 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 3200 psi (22063.3 kPa) |
| Pump Flow Capacity | 25 gal/min (95 L/min) |
Standard Blade
| Width | 11.1 ft in (3353 mm) |
| Height | 39.1 in (991 mm) |
| Capacity | 3.8 yd3 (2.9 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 21 in (533 mm) |
