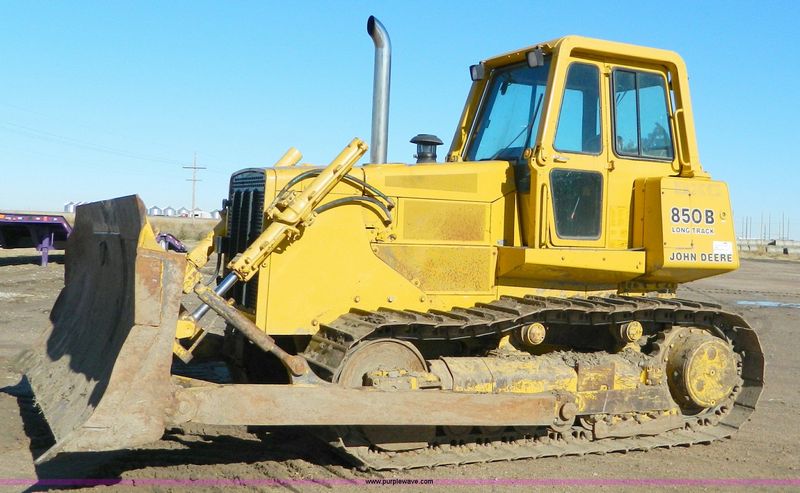

John Deere 850B
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 10.25 ft in (3124 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 7.92 ft in (2413 mm) |
| Ground Clearance | 1.37 ft in (417 mm) |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Ground Pressure | 8.31 psi (57.2 kPa) |
| Number Of Shoes Per Side | 37 |
| Number Of Track Rollers Per Side | 2 |
| Ground Contact Area | 4560 in2 (2.95 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6466A |
| Gross Power | 175 hp (130.5 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 578 lb ft (783.7 Nm) |
| Displacement | 466 cu in (7.7 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 37915 lb (17198 kg) |
| Fuel Capacity | 82 gal (310.4 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Hydraulic Fluid Capacity | 35 gal (132.5 L) |
| Powertrain Fluid Capacity | 8.6 gal (32.2 L) |
| Final Drives Fluid Capacity | 3.5 gal (13.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
Transmission
| Transmission Type | Automatic, dual-path, hydrostatic drive |
| Max Speed - Forward | 6.5 mph (10.5 km/h) |
| Max Speed - Reverse | 6.5 mph (10.5 km/h) |
Hydraulic System
| Pump Type | Vane |
| Relief Valve Pressure | 2250 psi (15514 kPa) |
| Pump Flow Capacity | 44 gal/min (166 L/min) |
Standard Blade
| Height | 42 in (1067 mm) |
| Capacity | 3.9 yd3 (3 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 20.6 in (523 mm) |
