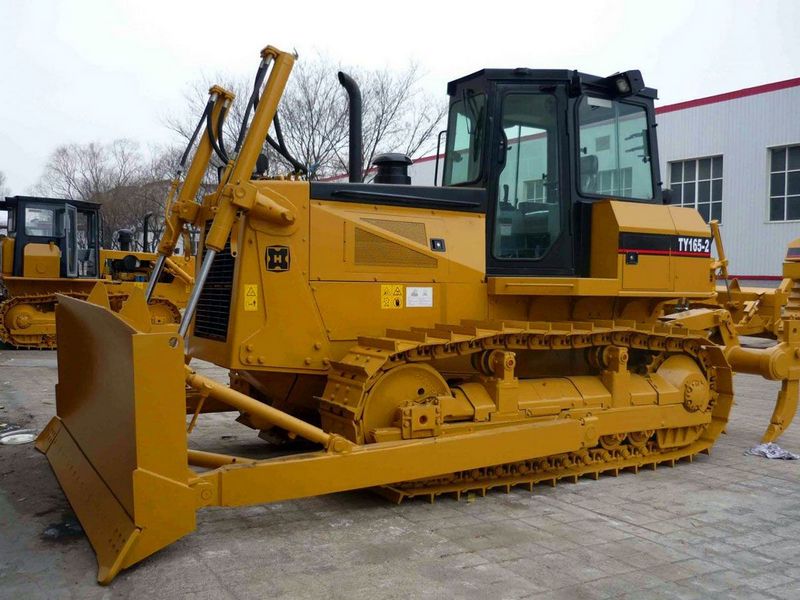

HBXG TY165-2
Browse All HBXG or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.18 ft in (5236 mm) |
| Height To Top Of Cab | 10.37 ft in (3160 mm) |
| Length Of Track On Ground | 8.44 ft in (2570 mm) |
| Ground Clearance | 1.16 ft in (352 mm) |
Undercarriage
| Standard Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 10.04 psi (69.2 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2537 |
| Engine Model | C6121 |
| Gross Power | 162.3 hp (121 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 582.7 lb ft (790 Nm) |
| Displacement | 640.8 cu in (10.5 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 39242.3 lb (17800 kg) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.1 mph (11.4 km/h) |
| Max Speed - Reverse | 8.7 mph (13.9 km/h) |
Standard Blade
| Width | 10.9 ft in (3297 mm) |
| Height | 46.1 in (1170 mm) |
| Cutting Depth | 16.6 in (420 mm) |
