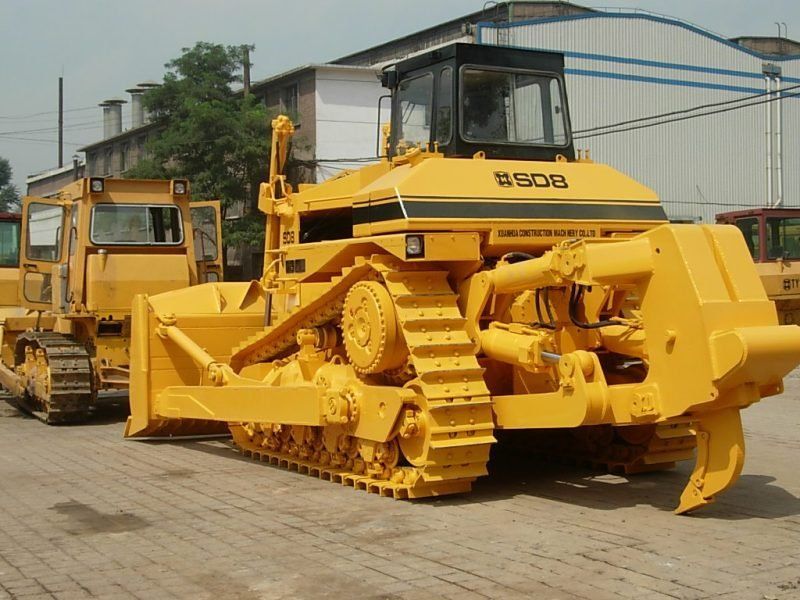

HBXG SD-8
Browse All HBXG or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 26.55 ft in (8090 mm) |
| Height To Top Of Cab | 12.97 ft in (3952 mm) |
| Length Of Track On Ground | 10.77 ft in (3280 mm) |
| Ground Clearance | 1.6 ft in (485 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Ground Pressure | 15.23 psi (105 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | CQNTA855-C400 |
| Gross Power | 329.9 hp (246 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 1200.1 lb ft (1627 Nm) |
| Displacement | 854.4 cu in (14 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 88184.9 lb (40000 kg) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.4 mph (11.9 km/h) |
| Max Speed - Reverse | 9.2 mph (14.8 km/h) |
Standard Blade
| Width | 13.7 ft in (4172 mm) |
| Height | 69.5 in (1765 mm) |
| Capacity | 17.1 yd3 (13 m3) |
| Cutting Depth | 24.2 in (614 mm) |
