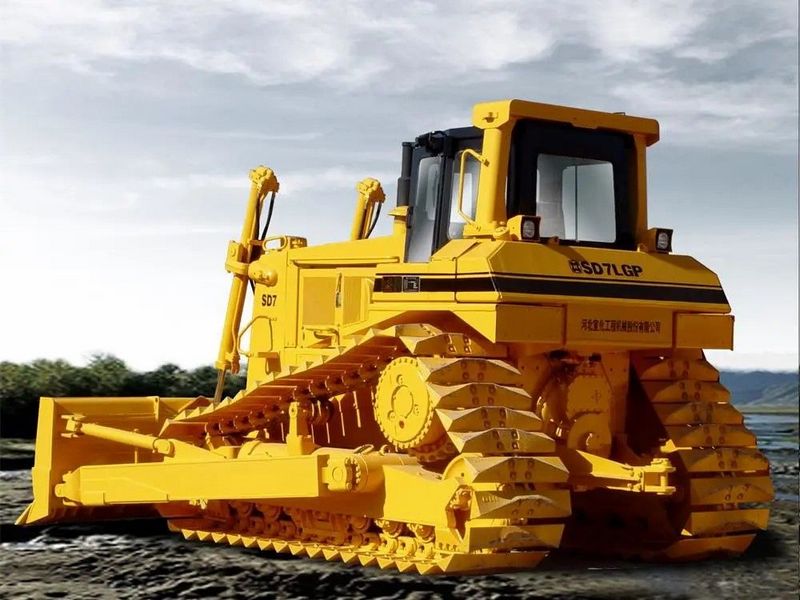

HBXG SD-7 LGP
Browse All HBXG or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 24.95 ft in (7604 mm) |
| Height To Top Of Cab | 11.17 ft in (3402 mm) |
| Length Of Track On Ground | 10.45 ft in (3185 mm) |
| Ground Clearance | 1.6 ft in (485 mm) |
Undercarriage
| Track Gauge | 7.34 ft in (2235 mm) |
| Standard Shoe Size | 35.99 in (914 mm) |
| Ground Pressure | 6.6 psi (45.5 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | CQNTA855-C280 |
| Gross Power | 217.3 hp (162 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 737.6 lb ft (1000 Nm) |
| Displacement | 854.4 cu in (14 L) |
| Torque Measured @ | 1450 rpm |
Operational
| Operating Weight | 57099.8 lb (25900 kg) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (10.9 km/h) |
| Max Speed - Reverse | 8.3 mph (13.2 km/h) |
Standard Blade
| Width | 12.6 ft in (3823 mm) |
| Height | 50.4 in (1280 mm) |
| Capacity | 8.3 yd3 (6.3 m3) |
| Cutting Depth | 19.7 in (500 mm) |
