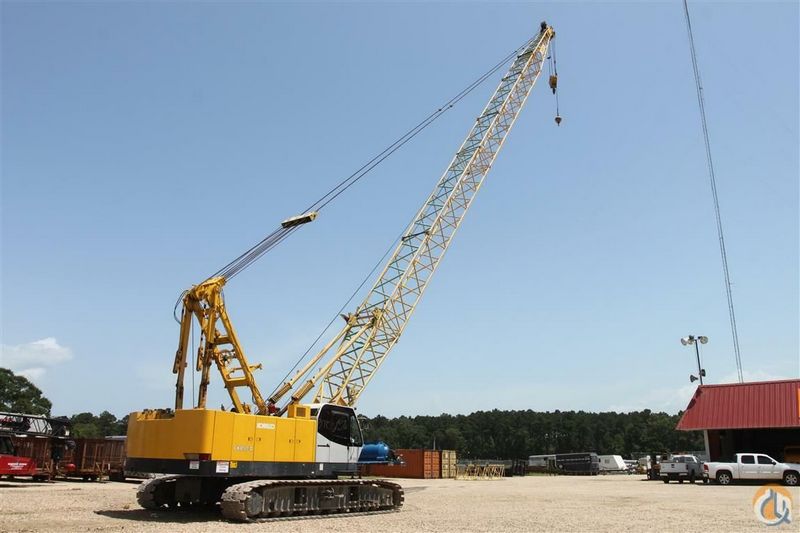

Kobelco CK850-II
Browse All Kobelco or Crawler Crane Models
Contents:
Engine
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D16-TLA2B |
| Gross Power | 213 hp (158.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 460 cu in (7.6 L) |
| Max Torque | 593 lb ft (804.1 Nm) |
| Torque Measured @ | 1600 rpm |
| Bore | 4.7 in (118 mm) |
| Stroke | 4.6 in (115 mm) |
Operational
| Fuel Capacity | 105.7 gal (400 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Transmission
| Max Speed | 0.8 mph (1.2 km/h) |
Undercarriage
| Width Of Shoes | 35.9 in (910 mm) |
Boom
| Min Height @ Max Raise Angle | 40.1 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 200.2 ft in (61 m) |
| Max Lift Capacity | 169976.4 lb (77100 kg) |
| Swing Speed | 4 rpm |
Dimensions
| Transport Length | 19.7 ft in (5990 mm) |
| Transport Width | 16.3 ft in (4940 mm) |
| Transport Height | 11.4 ft in (3450 mm) |
| Ground Clearance | 1.3 ft in (390 mm) |
| Counterweight Clearance | 3.7 ft in (1100 mm) |
