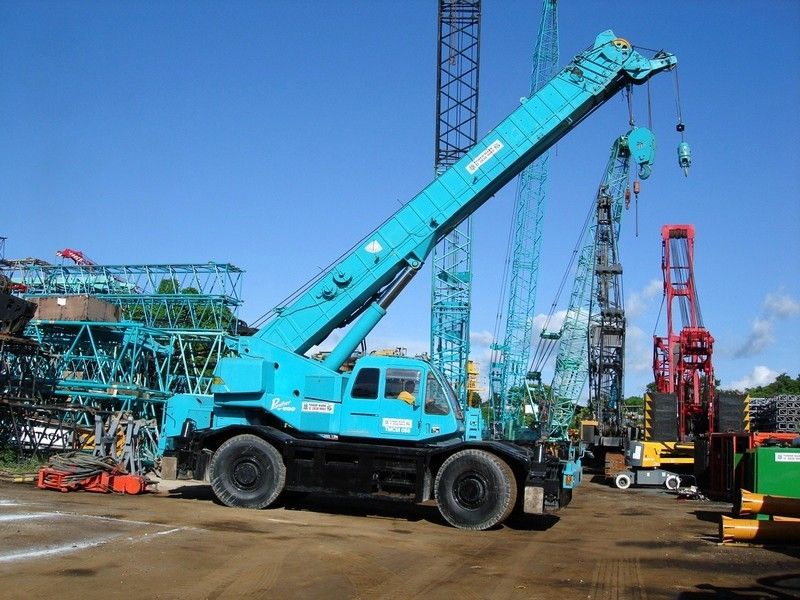

Kobelco RK450-2
Browse All Kobelco or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33.47 ft in (10.2 m) |
| Max Height @ Max Raise Angle - No Jib | 127.96 ft in (39 m) |
| Max Elevating Angle | 82.5 degrees |
| Number Of Sections | 5 |
| Swing Speed | 2.4 rpm |
Dimensions
| Transport Length | 40.1 ft in (12220 mm) |
| Transport Width | 9.52 ft in (2900 mm) |
| Transport Height | 11.98 ft in (3650 mm) |
| Wheelbase | 189.77 in (4820 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier/Base Length | 29527.56 ft in (9000 m) |
| Upper Structure Tail Swing Radius | 11.65 ft in (3550 mm) |
Engine
| Engine Make | Mitsubishi |
| Engine Model | 6D22TC |
| Gross Power | 315.7 hp (235.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 853.5 lb ft (1157.2 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 82585.2 lb (37460 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 151.9 gal (575 L) |
| Operating Voltage | 24 V |
| Tire Size | 18.00R25 |
Transmission
| Max Speed - Forward | 30.5 mph (49 km/h) |
