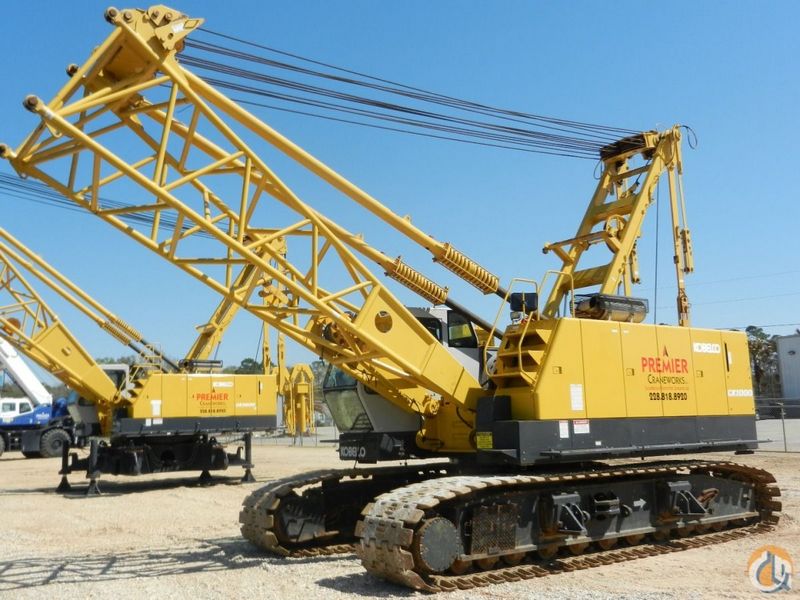

Kobelco CK1000-III
Browse All Kobelco or Crawler Crane Models
Contents:
Engine
| Battery | 2 |
| Number Of Cylinders | 6 |
| Engine Make | Hino |
| Engine Model | P11C-UN |
| Gross Power | 331 hp (246.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 642 cu in |
| Max Torque | 959 lb ft (1300.3 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Travel Speed, Low Range | 0.8 mph (1.2 km/h) |
| Travel Speed, High Range | 1.2 mph (1.9 km/h) |
| Operating Weight | 179676.8 lb (81500 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Hydraulic System Fluid Capacity | 116.3 gal (440 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Undercarriage
| Width Of Shoes | 35.9 in (910 mm) |
| Ground Pressure | 11 psi (75.9 kPa) |
Boom
| Min Height @ Max Raise Angle | 40.1 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 200.2 ft in (61 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 200000.1 lb (90718.5 kg) |
| Swing Speed | 4 rpm |
Dimensions
| Gradeability | 40 % |
| Transport Length | 40 ft in (12190 mm) |
| Transport Width | 16.9 ft in (5140 mm) |
| Operating Width | 11.9 ft in (3610 mm) |
| Transport Height | 12.9 ft in (3920 mm) |
| Tail Swing Radius | 3.7 ft in (1100 mm) |
