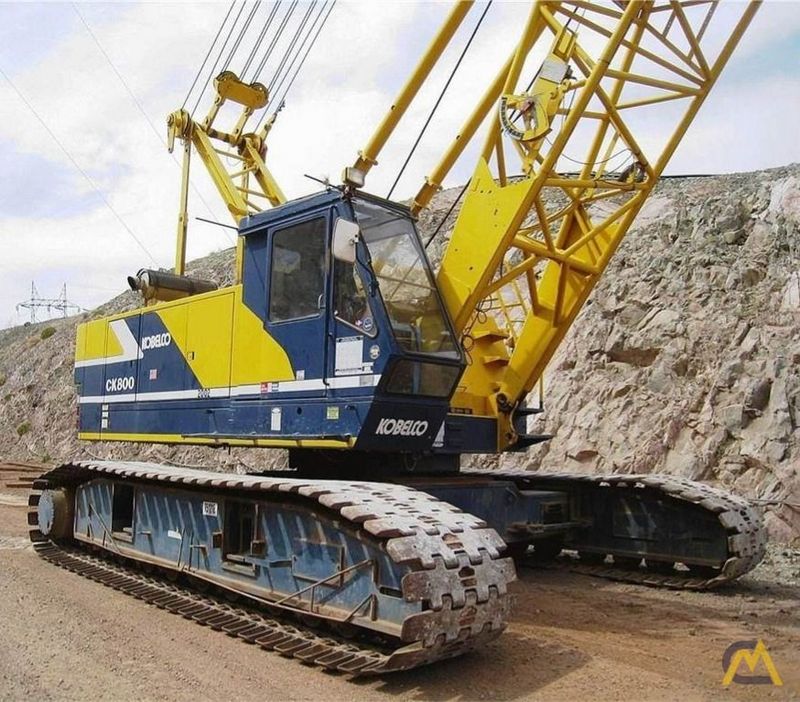

Kobelco CK800
Browse All Kobelco or Crawler Crane Models
Contents:
Engine
| Starter | 7.4 hp (5.5 kw) |
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D22C |
| Gross Power | 174.4 hp (130 kw) |
| Air Cleaner | Two stage, dry |
| Power Measured @ | 2000 rpm |
| Displacement | 677 cu in (11.1 L) |
| Max Torque | 497.9 lb ft (675 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Water-cooled |
| Bore | 5.2 in (130 mm) |
| Stroke | 5.6 in (140 mm) |
Operational
| Operating Weight | 131395.5 lb (59600 kg) |
| Fuel Capacity | 74 gal (280.2 L) |
| Hydraulic System Fluid Capacity | 66 gal (249.9 L) |
Transmission
| Max Speed | 0.8 mph (1.2 km/h) |
Undercarriage
| Number Of Shoes Per Side | 63 |
| Width Of Shoes | 31.5 in (800 mm) |
| Number Of Track Rollers Per Side | 10 |
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 180 ft in (54.9 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 160000.1 lb (72574.8 kg) |
| Swing Speed | 3 rpm |
Dimensions
| Gradeability | 40 % |
| Overall Width | 15.7 ft in (4758 mm) |
| Overall Length Of Crawler | 19.8 ft in (6014 mm) |
| Ground Clearance | 1.3 ft in (390 mm) |
