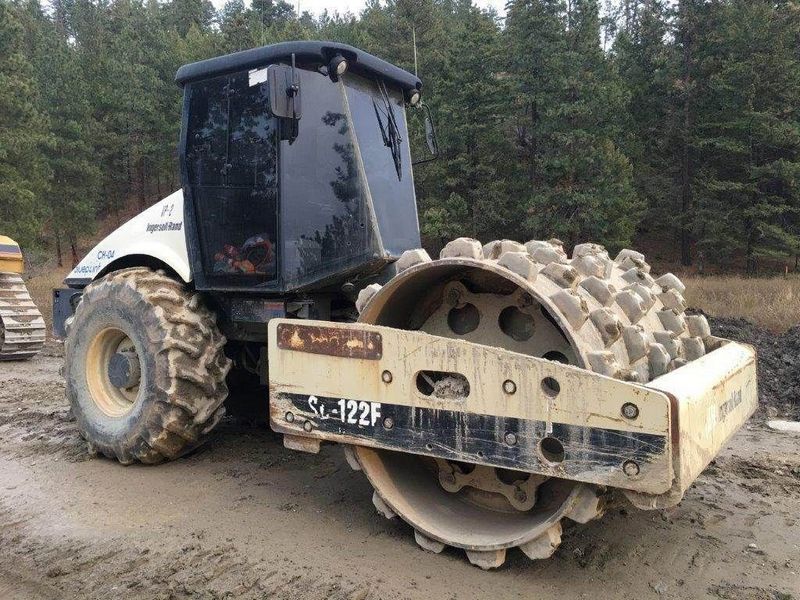

Ingersoll Rand SD122F
Browse All Ingersoll Rand or Compactor Models
Contents:
Dimensions
| Length With Blade On Ground | 19.35 ft in (5895 mm) |
| Ground Clearance | 1.59 ft in (483 mm) |
| Width Over Wheels | 7.5 ft in (2286 mm) |
| Height To Top Of Cab | 10.33 ft in (3146 mm) |
| Wheelbase | 10.18 ft in (3100 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-30T |
| Gross Power | 156 hp (116.4 kw) |
Operational
| Operating Weight | 28230.2 lb (12805 kg) |
| Fuel Capacity | 67.9 gal (257 L) |
| Hydraulic System Fluid Capacity | 22.2 gal (84 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 7.9 mph (12.7 km/h) |
Wheels
| Front Wheels Drum Width | 84.1 in (2134 mm) |
| Front Wheels Drum Diameter | 59.1 in (1499 mm) |
