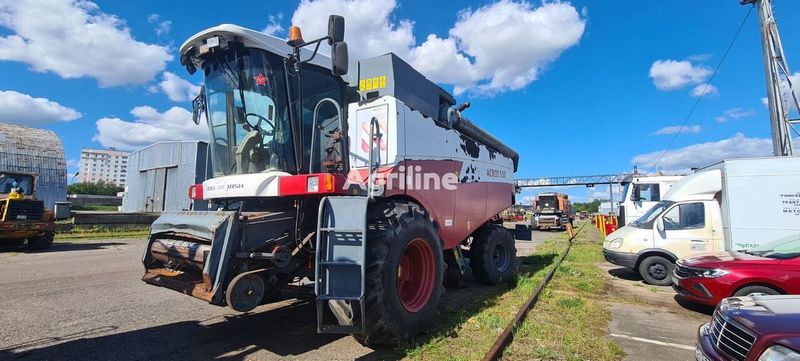

Rostselmash ACROS 530
Browse All Rostselmash or Combine Models
Contents:
Dimensions
| Overall Length | 54.14 ft in (16500 mm) |
| Width Over Tires | 12.61 ft in (3843 mm) |
| Height To Top Of Isomount Cab | 13.17 ft in (4012 mm) |
Engine
| Engine Make | 2402 |
| Engine Model | YAMZ-2366K |
| Power | 246.8 hp (184 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight W/O Attachment | 30291.6 lb (13740 kg) |
| Fuel Capacity | 142.7 gal (540 L) |
Feeding
| Conveyor Width | 373.5 in (9486 mm) |
| Conveyor Speed | 49 rpm |
Threshing
| Rotor Diameter | 31.5 in (800 mm) |
| Rotor Length | 59.1 in (1500 mm) |
| Rotor Speed - Low | 400 rpm |
| Rotor Speed - High | 1045 rpm |
| Concave Area | 2139.1 in2 (1.4 m2) |
Separating
| Separator Type | 5 key straw walker |
| Separator Length | 161.5 in (4100 mm) |
| Separating Area | 9532.6 in2 (6.2 m2) |
Cleaning System
| Total Cleaning Area | 7347.1 in2 (4.8 m2) |
| Cleaning Fan Speed - Low | 335 rpm |
| Cleaning Fan Speed - High | 1050 rpm |
Grain Handling
| Grain Tank Capacity | 255.4 bu (9000 L) |
| Unloading Speed | 2.6 bu/sec (90 L/sec) |
| Unloading Discharge Height | 14.2 ft in (4.3 m) |
