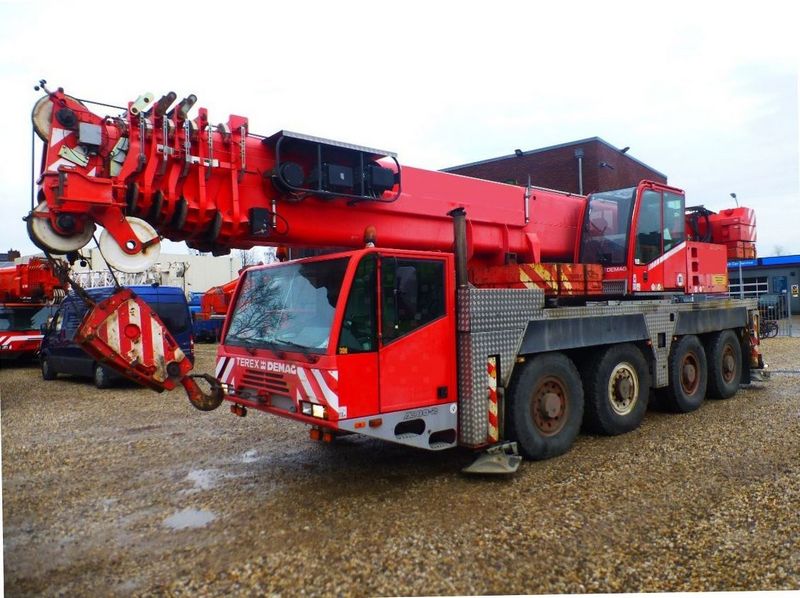

Terex AC80-2
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 42 ft in (12.8 m) |
| Max Height @ Max Raise Angle - No Jib | 176.19 ft in (53.7 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 137.8 ft in (42 m) |
| Max Elevating Angle | 81.5 degrees |
| Max Lift Capacity | 176369.8 lb (80000 kg) |
| Swing Speed | 1.3 rpm |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 39.74 ft in (12110 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.47 ft in (3800 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Width W/ Outriggers Extended | 22.97 ft in (7000 mm) |
| Carrier Length | 32.71 ft in (9970 mm) |
| Upper Structure Tail Swing Radius | 12.14 ft in (3700 mm) |
Carrier Engine
| Make | Terex |
| Model | OM 402 LA |
| Gross Power | 380 hp (283.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1309.2 lb ft (1775 Nm) |
| Torque Measured @ | 1200 rpm |
| Number Of Cylinders | 8 |
Operational
| Operating Weight | 105821.9 lb (48000 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | Allison Automatic Transmission |
| Max Speed - Forward | 49.8 mph (80 km/h) |
| Max Speed - Reverse | 6.9 mph (11 km/h) |
