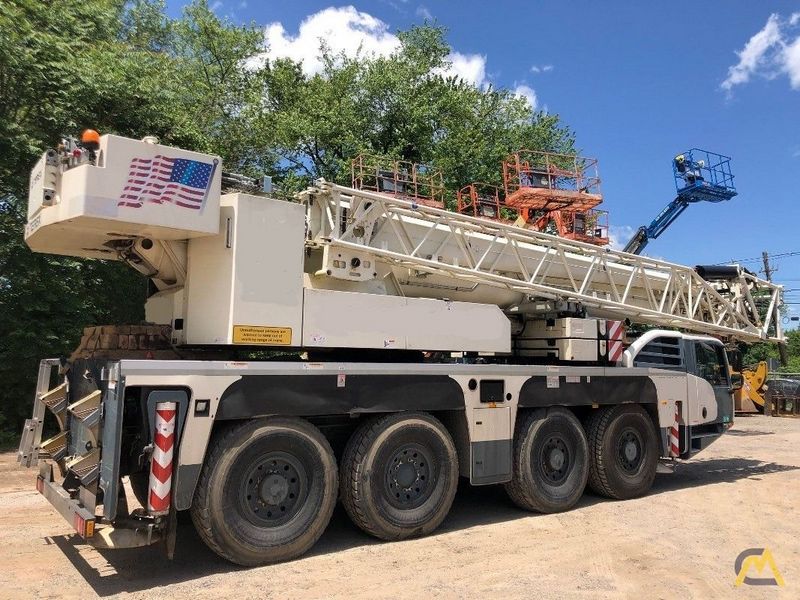

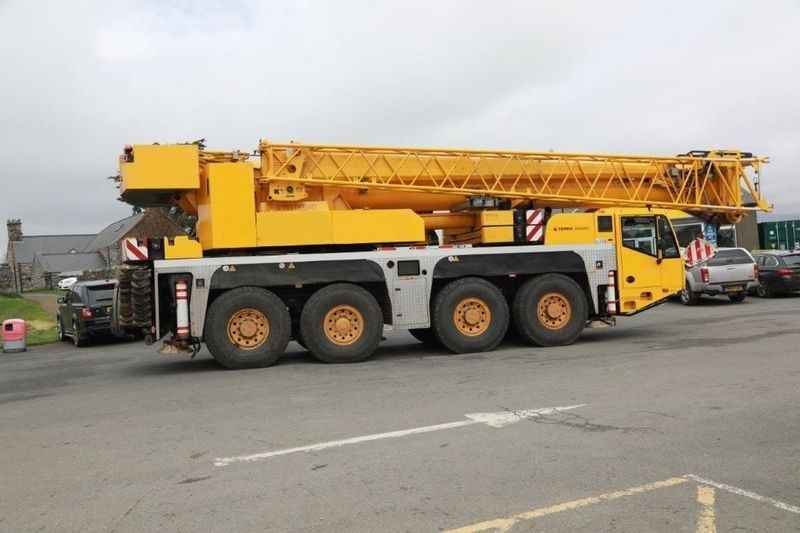

Terex AC100
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Max Height @ Max Raise Angle - No Jib | 164.7 ft in (50.2 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 150.92 ft in (46 m) |
| Max Elevating Angle | 82 degrees |
| Swing Speed | 1.7 rpm |
| Number Of Sections | 4 |
| Max Lift Capacity | 220462.25 lb (100000 kg) |
Dimensions
| Transport Length | 46.22 ft in (14085 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.93 ft in (3940 mm) |
| Ground Clearance | 1.1 ft in (335 mm) |
| Width W/ Outriggers Extended | 22.97 ft in (7000 mm) |
| Carrier Length | 36.19 ft in (11030 mm) |
| Upper Structure Tail Swing Radius | 13.18 ft in (4015 mm) |
Upper Structure Engine
| Make | Terex |
| Model | OM 904 LA |
| Gross Power | 174.4 hp (130 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 497.9 lb ft (675 Nm) |
| Torque Measured @ | 1200 rpm |
Carrier Engine
| Make | Terex |
| Model | OM 502 LA |
| Gross Power | 469.4 hp (350 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1696.4 lb ft (2300 Nm) |
| Torque Measured @ | 1080 rpm |
Operational
| Operating Weight | 105821.9 lb (48000 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 52.9 gal (200 L) |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | automated transmission |
| Max Speed - Forward | 52.9 mph (85 km/h) |
| Max Speed - Reverse | 3.8 mph (6 km/h) |
