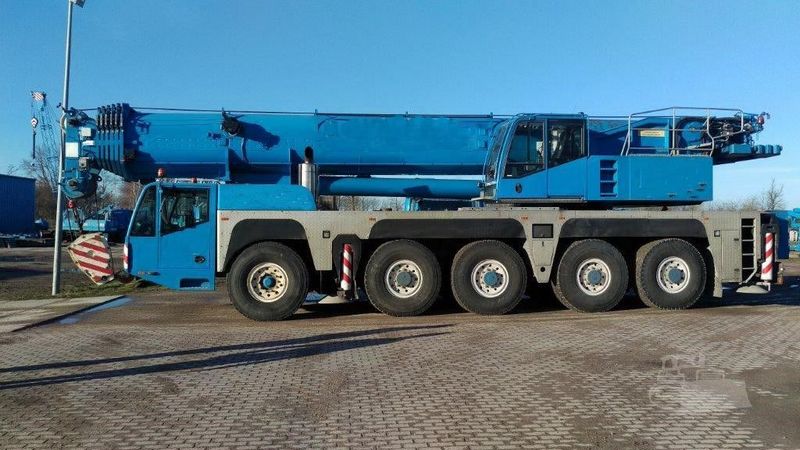

Terex AC200
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Number Of Sections | 4 |
Dimensions
| Transport Length | 565.36 ft in (172321 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Width W/ Outriggers Extended | 24.61 ft in (7500 mm) |
| Carrier Length | 44.62 ft in (13598 mm) |
| Upper Structure Tail Swing Radius | 16.39 ft in (4995 mm) |
Upper Structure Engine
| Make | Terex |
| Model | OM 442 LA |
| Gross Power | 550 hp (410.2 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 2350 lb ft (3186.2 Nm) |
| Torque Measured @ | 1100 rpm |
Carrier Engine
| Make | Terex |
| Model | OM 904 LA |
| Gross Power | 170 hp (126.8 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 660 lb ft (894.9 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Upper Structure Fuel Capacity | 132.1 gal (500 L) |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 16.00 R 25 |
Transmission
| Number Of Forward Gears | 14 |
| Number Of Reverse Gears | 1 |
