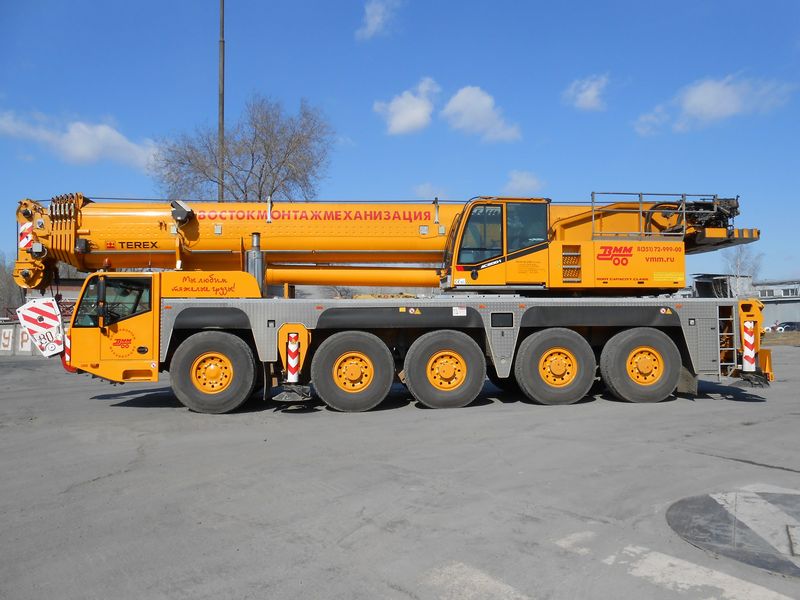

Terex AC200-1
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 52.5 ft in (16 m) |
| Max Height @ Max Raise Angle - No Jib | 232.94 ft in (71 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 203.42 ft in (62 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 6 |
| Max Lift Capacity | 440924.5 lb (200000 kg) |
| Swing Speed | 1.3 rpm |
Dimensions
| Transport Length | 48.27 ft in (14712 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Width W/ Outriggers Extended | 26.91 ft in (8200 mm) |
| Carrier Length | 41.39 ft in (12613 mm) |
| Upper Structure Tail Swing Radius | 15.75 ft in (4800 mm) |
Upper Structure Engine
| Make | Terex |
| Model | OM 906 LA |
| Gross Power | 231 hp (172.3 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 597.5 lb ft (810 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Terex |
| Model | OM 502 LA |
| Gross Power | 530 hp (395.3 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1770.2 lb ft (2400 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 132277.4 lb (60000 kg) |
| Number Of Axels | 5 |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | ZF AS-Tronic automated transmission |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 52.9 mph (85 km/h) |
