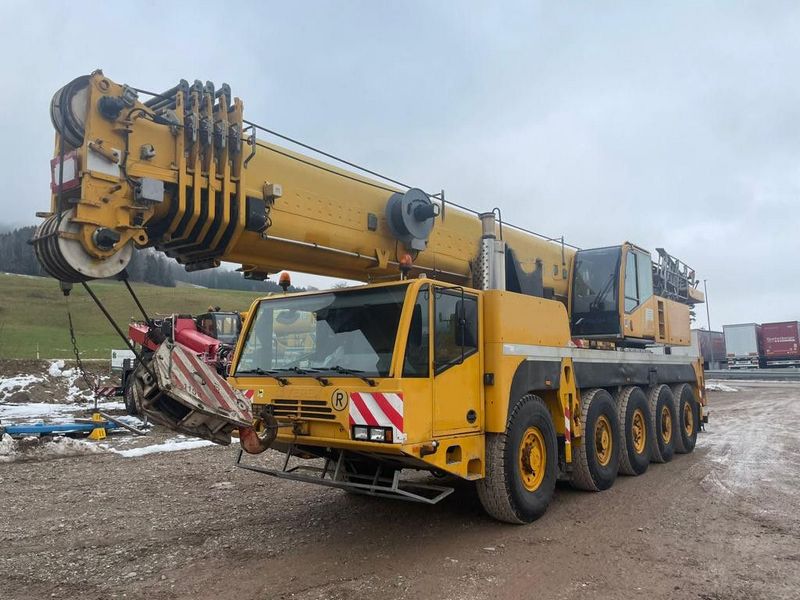

Terex AC120-1
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Max Height @ Max Raise Angle - No Jib | 196.86 ft in (60 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 183.73 ft in (56 m) |
| Max Elevating Angle | 82 degrees |
| Swing Speed | 1.7 rpm |
| Number Of Sections | 5 |
| Max Lift Capacity | 264554.7 lb (120000 kg) |
Dimensions
| Transport Length | 46.53 ft in (14180 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Ground Clearance | 0.91 ft in (275 mm) |
| Width W/ Outriggers Extended | 22.97 ft in (7000 mm) |
| Carrier Length | 36.67 ft in (11174 mm) |
| Upper Structure Tail Swing Radius | 13.46 ft in (4100 mm) |
Upper Structure Engine
| Make | Terex |
| Model | OM 904 LA |
| Gross Power | 174.4 hp (130 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 464.7 lb ft (630 Nm) |
| Torque Measured @ | 1200 rpm |
Carrier Engine
| Make | Terex |
| Model | OM 502 LA |
| Gross Power | 469.4 hp (350 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1696.4 lb ft (2300 Nm) |
| Torque Measured @ | 1080 rpm |
Operational
| Operating Weight | 132277.4 lb (60000 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 60.8 gal (230 L) |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Upper Structure Hydraulic System Fluid Capacity | 206.1 gal (780 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | ZF AS-Tronic electronically automated |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 52.9 mph (85 km/h) |
| Max Speed - Reverse | 3.8 mph (6 km/h) |
