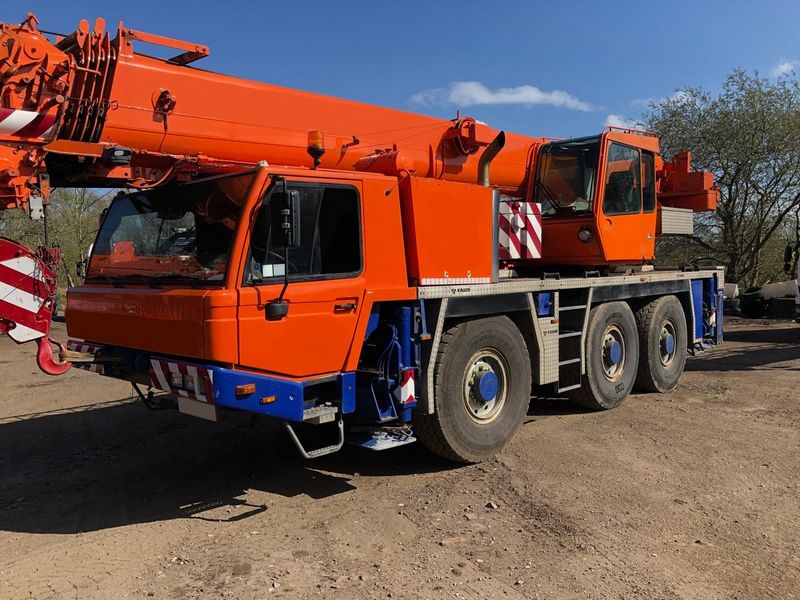

Tadano ATF45-3
Browse All Tadano or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 29.5 ft in (9 m) |
| Max Height @ Max Raise Angle - No Jib | 111.5 ft in (33.99 m) |
| Min Working Radius | 9 ft in (2.75 m) |
| Max Working Radius | 100 ft in (30.48 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 100000 lb (45359.24 kg) |
| Swing Speed | 2.5 rpm |
Dimensions
| Transport Length | 34.26 ft in (10440 mm) |
| Transport Width | 9.26 ft in (2820 mm) |
| Transport Height | 11.88 ft in (3620 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier Length | 30.16 ft in (9190 mm) |
| Upper Structure Tail Swing Radius | 12.37 ft in (3770 mm) |
Carrier Engine
| Make | Tadano |
| Model | OM 926 LA |
| Gross Power | 326 hp (243.1 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 958.9 lb ft (1300 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 439.4 cu in (7.2 L) |
Operational
| Operating Weight | 61685 lb (27979.9 kg) |
| Number Of Axels | 3 |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | ZF AS-Tronic type 12AS2302 |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 49.7 mph (80 km/h) |
| Max Speed - Reverse | 5 mph (8.1 km/h) |
