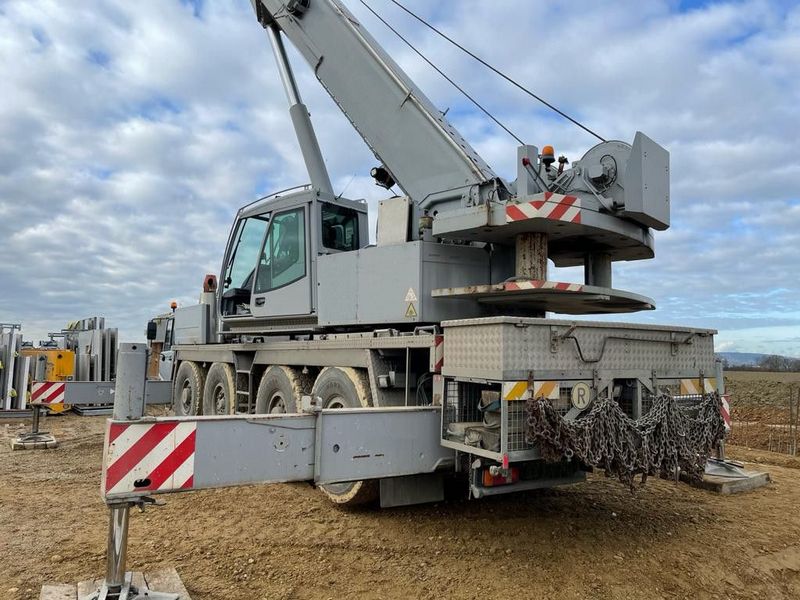

Tadano ATF80-4
Browse All Tadano or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35.4 ft in (10.79 m) |
| Max Height @ Max Raise Angle - No Jib | 97.4 ft in (29.69 m) |
| Min Working Radius | 9 ft in (2.75 m) |
| Max Working Radius | 150 ft in (45.72 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 6 |
| Max Lift Capacity | 200000 lb (90718.48 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 42.49 ft in (12950 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.36 ft in (3765 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier Length | 35.39 ft in (10785 mm) |
| Upper Structure Tail Swing Radius | 12.62 ft in (3845 mm) |
Upper Structure Engine
| Make | Tadano |
| Model | OM 904 LA |
| Gross Power | 177 hp (132 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 486.8 lb ft (660 Nm) |
| Torque Measured @ | 1200 rpm |
Carrier Engine
| Make | Tadano |
| Model | OM 501 LA |
| Gross Power | 428 hp (319.2 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1475 lb ft (1999.9 Nm) |
| Torque Measured @ | 1080 rpm |
| Displacement | 729 cu in (12 L) |
Operational
| Operating Weight | 105821 lb (47999.7 kg) |
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 58.2 gal (220 L) |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | ZF AS-Tronic 12AS2302 transmission |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 52.8 mph (85 km/h) |
| Max Speed - Reverse | 5 mph (8.1 km/h) |
