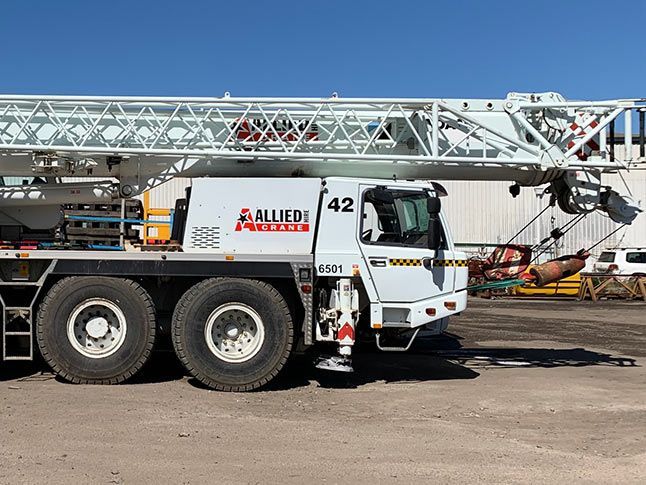

Tadano ATF65G-4
Browse All Tadano or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 45 ft in (13.72 m) |
| Max Height @ Max Raise Angle - No Jib | 154.2 ft in (47 m) |
| Min Working Radius | 8 ft in (2.44 m) |
| Max Working Radius | 65 ft in (19.82 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 150000 lb (68038.86 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 40.64 ft in (12385 mm) |
| Transport Width | 8.73 ft in (2660 mm) |
| Transport Height | 12.44 ft in (3789 mm) |
| Width W/ Outriggers Extended | 21 ft in (6400 mm) |
| Carrier Length | 32.75 ft in (9980 mm) |
| Upper Structure Tail Swing Radius | 13.88 ft in (4230 mm) |
Upper Structure Engine
| Make | Tadano |
| Model | OM 904 LA |
| Gross Power | 122 hp (91 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 348 lb ft (471.9 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 259 cu in (4.3 L) |
Carrier Engine
| Make | Tadano |
| Model | OM 501 LA |
| Gross Power | 391 hp (291.6 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1369 lb ft (1856.2 Nm) |
| Torque Measured @ | 1080 rpm |
| Displacement | 729 cu in (12 L) |
Operational
| Operating Weight | 73655 lb (33409.4 kg) |
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 52.9 gal (200 L) |
| Carrier Fuel Capacity | 87.2 gal (330 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | ZF AS-Tronic 12AS2302 mechanical transmission with full automatic gear shifting |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 52.8 mph (85 km/h) |
| Max Speed - Reverse | 5 mph (8.1 km/h) |
