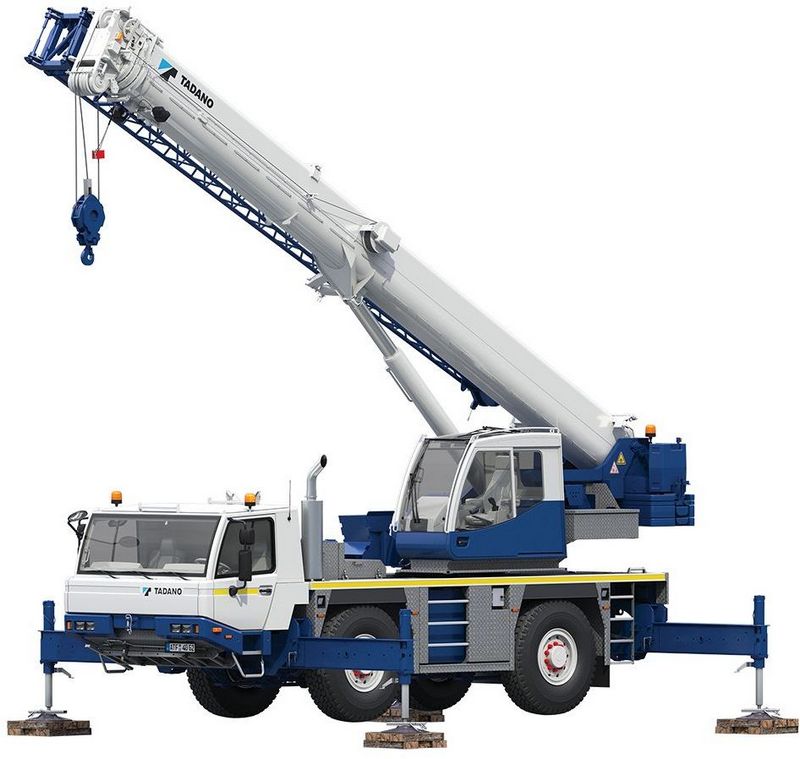

Tadano ATF40G-2
Browse All Tadano or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34.29 ft in (10.45 m) |
| Max Height @ Max Raise Angle - No Jib | 115.49 ft in (35.21 m) |
| Max Elevating Angle | 40 degrees |
| Sections | 4 |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 434.3 in (11031 mm) |
| Transport Width | 8366.15 ft in (2550 m) |
| Transport Height | 139.81 in (3551 mm) |
| Ground Clearance | 1.12 ft in (341 mm) |
| Carrier Length | 28.32 ft in (8630 mm) |
| Upper Structure Tail Swing Radius | 11.36 ft in (3460 mm) |
Electrical System
| Voltage | 24 V |
| Batteries | 2 |
Carrier Engine
| Make | Tadano |
| Model | OM 926 LA |
| Gross Power | 279 hp (208.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 439.4 cu in (7.2 L) |
Operational
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 79.3 gal (300 L) |
| Tire Size | 14.00R25 |
Transmission
| Drive System | 4 x 4 |
| Transmission Type | ZF Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
Brakes
| Parking Brake | spring loaded |
| Service Brake | Dual circuit |
